PRÜFBLASEN mit DOPPELT BYPASS
Artikel Nr.: KTB

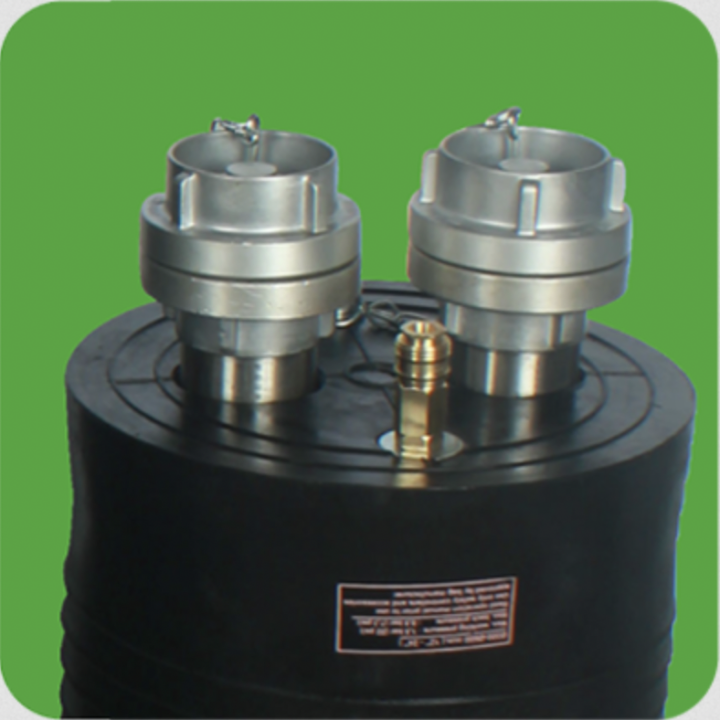

PIPE DOKTOR Pipe Test Plugs with Double By-pass are products that help to test the pipeline during the temporary blocking of the pipelines and to ensure the evacuation of the fluid in the pipeline. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C.Thanks to its wide diameter range, it allows to block multiple pipe diameter ranges with a single product. Production can be provided starting from 25mm pipe diameter up to 2800mm diameter. The biggest advantage is that, unlike standard test plugs, its double by-pass design allows testing with the help of a float while discharging.
*It can be produced with NBR rubber resistant to gas, petroleum and derivatives.
*It can be produced with NBR rubber resistant to gas, petroleum and derivatives.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | |||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| KTB3570D | 35 | 70 | 3.0 / 44 | 33 | 175 | 0.5 / 7.3 | 2x3/10" | 1.4 |
| KTB50100D | 50 | 100 | 1.5 / 22 | 47 | 350 | 0.5 / 7.3 | 2x3/10" | 0.5 |
| KTB50100/2,5D | 50 | 100 | 2.5 / 36 | 47 | 350 | 1.0 / 15 | 2x3/10" | 0.6 |
| KTB70150D | 70 | 150 | 1.5 / 22 | 68 | 400 | 0.5 / 7.3 | 2x1/4" | 1.3 |
| KTB70150/2,5D | 70 | 150 | 2.5 / 36 | 68 | 400 | 1.0 / 15 | 2x1/4" | 1.5 |
| KTB100200D | 100 | 200 | 1.5 / 22 | 91 | 600 | 0.5 / 7.3 | 2x1/2" | 2.6 |
| KTB100200/2,5D | 100 | 200 | 2.5 / 36 | 91 | 600 | 1.0 / 15 | 2x1/2" | 2.8 |
| KTB150300D | 150 | 300 | 1.5 / 22 | 140 | 600 | 0.5 / 7.3 | 2x1" | 4.8 |
| KTB150300/2,5D | 150 | 300 | 2.5 / 36 | 140 | 600 | 1.0 / 15 | 2x1" | 5.1 |
| KTB200400D | 200 | 400 | 1.5 / 22 | 187 | 700 | 0.5 / 7.3 | 2x1" | 8.5 |
| KTB200400/2,5D | 200 | 400 | 2.5 / 36 | 187 | 700 | 1.0 / 15 | 2x1" | 8.9 |
| KTB200500D | 200 | 400 | 1.5 / 22 | 187 | 850 | 0.5 / 7.3 | 2x1" | 9.5 |
| KTB200500/2,5D | 200 | 400 | 2.5 / 36 | 187 | 850 | 1.0 / 15 | 2x1" | 9.7 |
| KTB300600D | 300 | 600 | 1.5 / 22 | 286 | 900 | 0.5 / 7.3 | 2x2" | 13.4 |
| KTB300600/2,5D | 300 | 600 | 2.5 / 36 | 286 | 900 | 1.0 / 15 | 2x2" | 13.8 |
| KTB375750D | 375 | 750 | 1.5 / 22 | 361 | 1050 | 0.5 / 7.3 | 2x2" | 19.0 |
| KTB375750/2,5D | 375 | 750 | 2.5 / 36 | 361 | 1050 | 1.0 / 15 | 2x2" | 19.5 |
| KTB400800D | 400 | 800 | 1.5 / 22 | 365 | 1050 | 0.5 / 7.3 | 2x2" | 19.0 |
| KTB400800/2,5D | 400 | 800 | 2.5 / 36 | 365 | 1050 | 1.0 / 15 | 2x2" | 19.5 |
| KTB5001000D | 500 | 1000 | 1.5 / 22 | 486 | 1150 | 0.5 / 7.3 | 2x2" | 31.0 |
| KTB5001000/2,5D | 500 | 1000 | 2.5 / 36 | 486 | 1150 | 1.0 / 15 | 2x2" | 31.5 |
| KTB5001200D | 500 | 1000 | 1.5 / 22 | 486 | 1350 | 0.5 / 7.3 | 2x2" | 35.0 |
| KTB6001200D | 600 | 1200 | 2.5 / 36 | 586 | 1350 | 0.3 / 4.4 | 2x2" | 43.0 |
| KTB6001200/2,5D | 600 | 1200 | 2.5 / 36 | 586 | 1350 | 0.8 /1.6 | 2x2" | 45.0 |
| KTB6001600D | 600 | 1200 | 1.0 / 15 | 586 | 2100 | 0.3 / 4.4 | 2x2" | 66.0 |
| KTB6001600/1,5D | 600 | 1200 | 1.5 / 22 | 586 | 2100 | 0.4/ 5.8 | 2x2" | 78.0 |
| KTB8001600D | 800 | 1600 | 1.0 / 15 | 782 | 2050 | 0.5 / 7.3 | 2x2" | 90.0 |
| KTB8001800D | 800 | 1600 | 1.0 / 15 | 782 | 2300 | 0.4/ 5.8 | 2x2" | 100.0 |
| KTB8002000D | 800 | 1800 | 1.0 / 15 | 782 | 2800 | 0.4/ 5.8 | 2x2" | 115.0 |
| KTB8002200D | 800 | 2000 | 1.0 / 15 | 782 | 3300 | 0.3 / 4.4 | 2x2" | 126.0 |
| KTB12002400D | 1200 | 2200 | 1.0 / 15 | 1172 | 3100 | 0.5 / 7.3 | 2x2" | 206.0 |
| KTB12002600D | 1200 | 2600 | 1.0 / 15 | 1172 | 3100 | 0.4/ 5.8 | 2x2" | 220.0 |
| KTB12002800D | 1200 | 2800 | 1.0 / 15 | 1172 | 4100 | 0.3 / 4.4 | 2x2" | 240.0 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | |||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (inch) | (Ibs) | |
| KTB3570D | 35 | 70 | 3.0 / 44 | 1.3" | 6.9" | 0.5 / 7.3 | 2x3/10" | 3.0 |
| KTB50100D | 50 | 100 | 1.5 / 22 | 1.9" | 13.8" | 0.5 / 7.3 | 2x3/10" | 1.1 |
| KTB50100/2,5D | 50 | 100 | 2.5 / 36 | 1.9" | 13.8" | 1.0 / 15 | 2x3/10" | 1.3 |
| KTB70150D | 70 | 150 | 1.5 / 22 | 2.7" | 15.7" | 0.5 / 7.3 | 2x1/4" | 2.8 |
| KTB70150/2,5D | 70 | 150 | 2.5 / 36 | 2.7" | 15.7" | 1.0 / 15 | 2x1/4" | 3.3 |
| KTB100200D | 100 | 200 | 1.5 / 22 | 3.6" | 23.6" | 0.5 / 7.3 | 2x1/2" | 5.7 |
| KTB100200/2,5D | 100 | 200 | 2.5 / 36 | 3.6" | 23.6" | 1.0 / 15 | 2x1/2" | 6.1 |
| KTB150300D | 150 | 300 | 1.5 / 22 | 5.5" | 23.6" | 0.5 / 7.3 | 2x1" | 10.5 |
| KTB150300/2,5D | 150 | 300 | 2.5 / 36 | 5.5" | 23.6" | 1.0 / 15 | 2x1" | 11.2 |
| KTB200400D | 200 | 400 | 1.5 / 22 | 7.4" | 27.6" | 0.5 / 7.3 | 2x1" | 18.7 |
| KTB200400/2,5D | 200 | 400 | 2.5 / 36 | 7.4" | 27.6" | 1.0 / 15 | 2x1" | 19.5 |
| KTB200500D | 200 | 400 | 1.5 / 22 | 7.4" | 33.5" | 0.5 / 7.3 | 2x1" | 20.9 |
| KTB200500/2,5D | 200 | 400 | 2.5 / 36 | 7.4" | 33.5" | 1.0 / 15 | 2x1" | 21.3 |
| KTB300600D | 300 | 600 | 1.5 / 22 | 11.3" | 35.4" | 0.5 / 7.3 | 2x2" | 29.4 |
| KTB300600/2,5D | 300 | 600 | 2.5 / 36 | 11.3" | 35.4" | 1.0 / 15 | 2x2" | 30.3 |
| KTB375750D | 375 | 750 | 1.5 / 22 | 14.2" | 41.3" | 0.5 / 7.3 | 2x2" | 41.8 |
| KTB375750/2,5D | 375 | 750 | 2.5 / 36 | 14.2" | 41.3" | 1.0 / 15 | 2x2" | 42.9 |
| KTB400800D | 400 | 800 | 1.5 / 22 | 14.4" | 41.3" | 0.5 / 7.3 | 2x2" | 41.8 |
| KTB400800/2,5D | 400 | 800 | 2.5 / 36 | 14.4" | 41.3" | 1.0 / 15 | 2x2" | 42.9 |
| KTB5001000D | 500 | 1000 | 1.5 / 22 | 19" | 47.2" | 0.5 / 7.3 | 2x2" | 68.2 |
| KTB5001000/2,5D | 500 | 1000 | 2.5 / 36 | 19" | 47.2" | 1.0 / 15 | 2x2" | 69.3 |
| KTB5001200D | 500 | 1000 | 1.5 / 22 | 19" | 59.1" | 0.5 / 7.3 | 2x2" | 77.0 |
| KTB6001200D | 600 | 1200 | 2.5 / 36 | 23.1" | 53.1" | 0.3 / 4.4 | 2x2" | 94.6 |
| KTB6001200/2,5D | 600 | 1200 | 2.5 / 36 | 23.1" | 53.1" | 0.8 /1.6 | 2x2" | 99.0 |
| KTB6001600D | 600 | 1200 | 1.0 / 15 | 23.1" | 82.7" | 0.3 / 4.4 | 2x2" | 145.2 |
| KTB6001600/1,5D | 600 | 1200 | 1.5 / 22 | 23.1" | 82.7" | 0.4/ 5.8 | 2x2" | 171.6 |
| KTB8001600D | 800 | 1600 | 1.0 / 15 | 30.8" | 74.8" | 0.5 / 7.3 | 2x2" | 198.0 |
| KTB8001800D | 800 | 1600 | 1.0 / 15 | 30.8" | 92.5" | 0.4/ 5.8 | 2x2" | 220.0 |
| KTB8002000D | 800 | 1800 | 1.0 / 15 | 30.8" | 112.2" | 0.4/ 5.8 | 2x2" | 253.0 |
| KTB8002200D | 800 | 2000 | 1.0 / 15 | 30.8" | 131.9" | 0.3 / 4.4 | 2x2" | 277.2 |
| KTB12002400D | 1200 | 2200 | 1.0 / 15 | 46" | 126" | 0.5 / 7.3 | 2x2" | 453.2 |
| KTB12002600D | 1200 | 2600 | 1.0 / 15 | 46" | 126" | 0.4/ 5.8 | 2x2" | 484.0 |
| KTB12002800D | 1200 | 2800 | 1.0 / 15 | 46" | 165.4" | 0.3 / 4.4 | 2x2" | 528.0 |
