PRÜFBLASEN MIT BYPASS FÜR SCHÄCHTE
Artikel Nr.: SKB

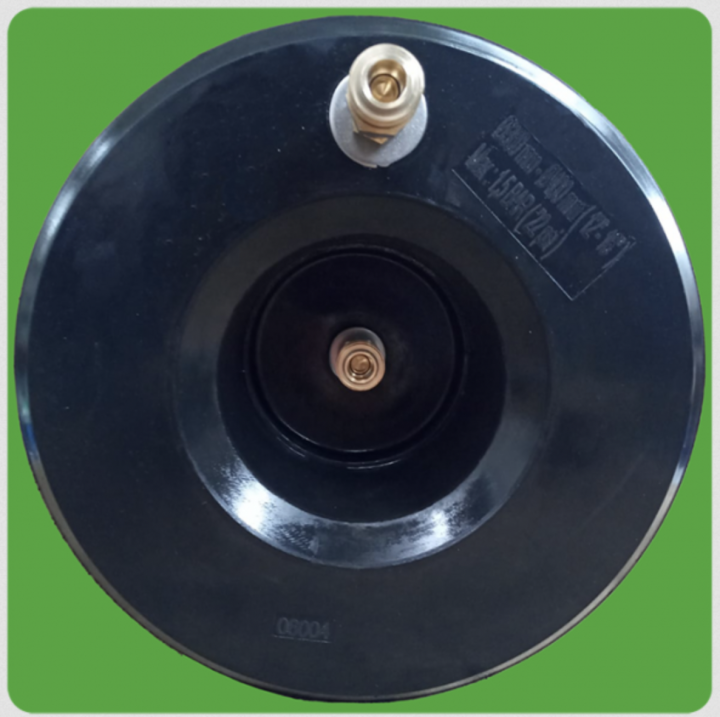

PIPE DOKTOR Bagel Shaped Pipe Test Plugs are short test plugs that allow low pressure manhole testing. It is produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C. Its biggest advantage is that it is designed to be lighter and easier to transport compared to manhole test products.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| SKB300400 | 300 | 400 | 1.5 / 22 | 282 | 252 | 2x1/4" | 5.0 |
| SKB400500 | 400 | 500 | 1.5 / 22 | 382 | 252 | 2x1/4" | 6.5 |
| SKB500600 | 500 | 600 | 1.5 / 22 | 482 | 252 | 2x1/4" | 8.0 |
| SKB600700 | 600 | 700 | 1.5 / 22 | 582 | 252 | 2x1/4" | 10.0 |
| SKB700800 | 700 | 800 | 1.5 / 22 | 682 | 252 | 2x1/4" | 12.0 |
| SKB800900 | 800 | 900 | 1.5 / 22 | 782 | 252 | 2x1/4" | 13.5 |
| SKB9001050 | 900 | 1050 | 1.5 / 22 | 882 | 252 | 2x1/4" | 15.0 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (lbs) | |
| SKB300400 | 12" | 16" | 1.5 / 22 | 11" | 10" | 2x1/4" | 11.0 |
| SKB400500 | 16" | 20" | 1.5 / 22 | 15" | 10" | 2x1/4" | 14.2 |
| SKB500600 | 20" | 24" | 1.5 / 22 | 19" | 10" | 2x1/4" | 18.0 |
| SKB600700 | 24" | 28" | 1.5 / 22 | 23" | 10" | 2x1/4" | 22.0 |
| SKB700800 | 28" | 32" | 1.5 / 22 | 27" | 10" | 2x1/4" | 26.0 |
| SKB800900 | 32" | 35" | 1.5 / 22 | 31" | 10" | 2x1/4" | 29.7 |
| SKB9001050 | 35" | 41" | 1.5 / 22 | 34" | 10" | 2x1/4" | 33.0 |
