PRÜFBLASEN FÜR HAUSANSCHLUSS
Artikel Nr.: EHTB

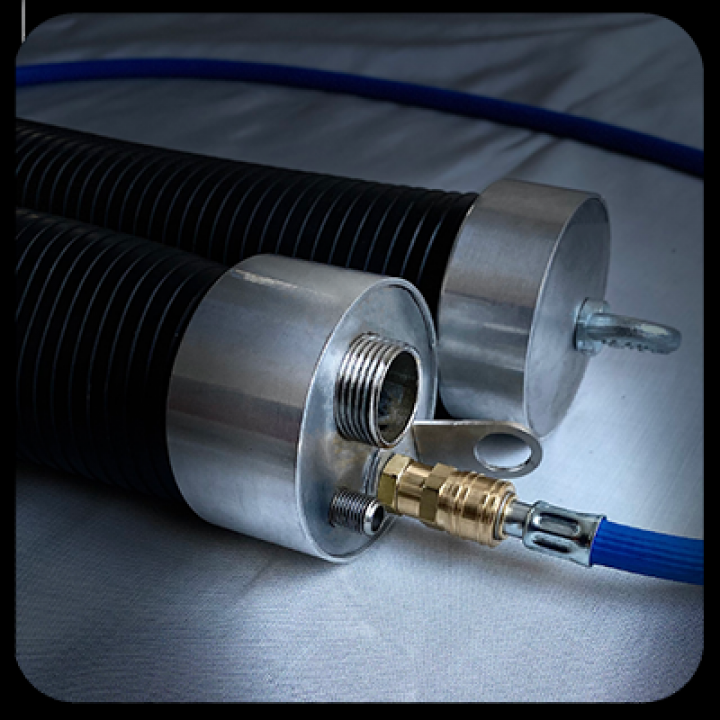

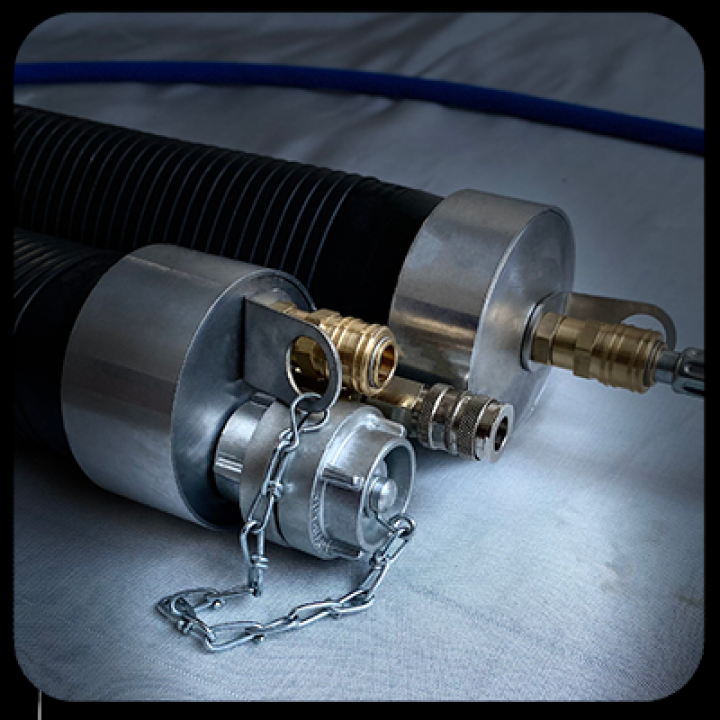

PIPE DOKTOR Home Pipeline Test Plugs are products that allow testing of small diameter house pipelines and fluid discharge. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C. Its biggest advantage is that it allows testing of a long-distance range, thanks to the inflation hose connection between the plugs.
METRIC
| Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | By-Pass Size | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| EHTB70150 | 70 | 150 | 2.5 / 36 | 67 | 370 | 1/4" | 4.2 |
| EHTB100200 | 100 | 200 | 2.5 / 36 | 90 | 500 | 1/4" | 5.7 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (lbs) | |
| EHTB70150 | 2.8" | 6" | 2.5 / 36 | 2.6" | 14.5" | 1/4" | 9.2 |
| EHTB100200 | 4" | 8" | 2.5 / 36 | 3.5" | 20" | 1/4" | 12.5 |
Download
Technical Documents Klicken Sie oben, um den Katalog herunterzuladen
