PROFESSIONALE PRÜFBLASEN
Artikel Nr.: SKTB

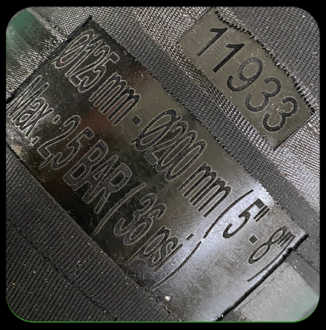

PIPE DOKTOR Pipe Test Plugs are products that help to test the pipeline during the temporary blinding of the pipelines and to ensure the evacuation of the fluid in the pipeline. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C.
METRIC
| Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (bar) / (psi) | (inch) | (kg) | |
| SKTB70150 | 70 | 150 | 1.5 / 22 | 70 | 400 | 0.5 / 7.3 | 1" | 1.9 |
| SKTB100150 | 100 | 150 | 1.5 / 22 | 87 | 260 | 0.5 / 7.3 | 1" | 1.9 |
| SKTB100200 | 100 | 200 | 1.5 / 22 | 94 | 400 | 0.5 / 7.3 | 1" | 2.1 |
| SKTB125200 | 125 | 200 | 1.5 / 22 | 117 | 260 | 0.5 / 7.3 | 1"+1/4" | 2.1 |
| SKTB200500 | 200 | 500 | 1.5 / 22 | 191 | 680 | 0.5 / 7.3 | 1"+2" | 6.8 |
| SKTB300600 | 300 | 600 | 1.5 / 22 | 240 | 680 | 0.5 / 7.3 | 1"+2" | 15.2 |
| SKTB375750 | 375 | 750 | 1.5 / 22 | 354 | 800 | 0.5 / 7.3 | 2x1"+3" | 20.5 |
| SKTB500800 | 500 | 800 | 1.5 / 22 | 440 | 800 | 0.5 / 7.3 | 2x1"+4" | 35.0 |
| SKTB5001200 | 500 | 1200 | 1.5 / 22 | 440 | 990 | 0.5 / 7.3 | 2x1"+4" | 46.8 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (bar) / (psi) | (inch) | (kg) | |
| SKTB70150 | 2.8" | 6" | 1.5 / 22 | 2.8" | 16" | 0.5 / 7.3 | 1" | 4.1 |
| SKTB100150 | 4" | 6" | 1.5 / 22 | 3.4" | 10" | 0.5 / 7.3 | 1" | 4.1 |
| SKTB100200 | 4" | 8" | 1.5 / 22 | 3.7" | 16" | 0.5 / 7.3 | 1" | 4.6 |
| SKTB125200 | 5" | 8" | 1.5 / 22 | 4.6" | 10" | 0.5 / 7.3 | 1"+1/4" | 4.6 |
| SKTB200500 | 8" | 20" | 1.5 / 22 | 7.5" | 27" | 0.5 / 7.3 | 1"+2" | 14.9 |
| SKTB300600 | 12" | 24" | 1.5 / 22 | 9.4" | 27" | 0.5 / 7.3 | 1"+2" | 33.4 |
| SKTB375750 | 15" | 30" | 1.5 / 22 | 14.0" | 32" | 0.5 / 7.3 | 2x1"+3" | 45.1 |
| SKTB500800 | 20" | 32" | 1.5 / 22 | 17.3" | 32" | 0.5 / 7.3 | 2x1"+4" | 77.0 |
| SKTB5001200 | 20" | 48" | 1.5 / 22 | 17.3" | 39" | 0.5 / 7.3 | 2x1"+4" | 102.9 |
Download
Technical Documents Klicken Sie oben, um den Katalog herunterzuladen
