PRÜFBLASEN FÜR HOHE DURCHFLUSSMENGEN
Artikel Nr.: LKTB

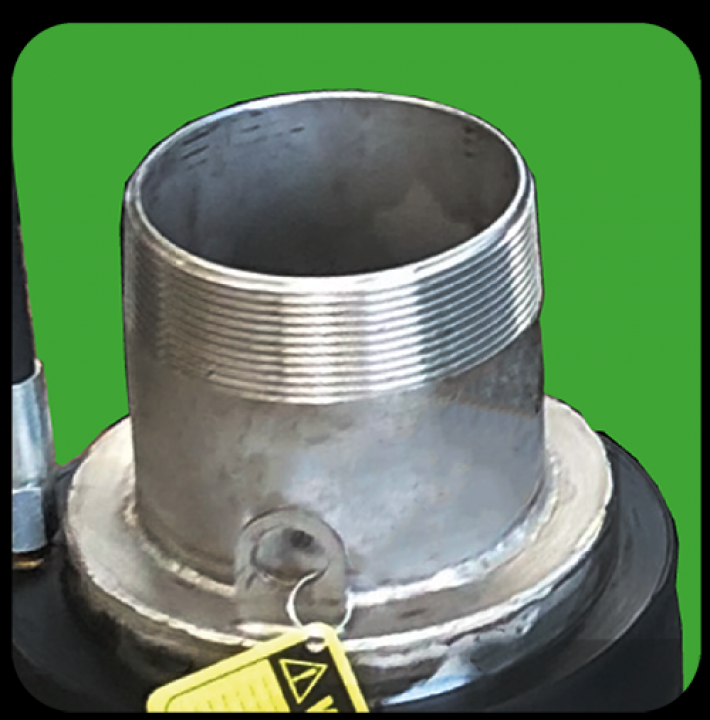

PIPE DOKTOR Pipe Test Plugs with Large By-pass are products that help test the pipeline during the temporary blocking of the pipelines and ensure the discharging of the flow in the pipeline. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C. The biggest advantage is to provide rapid evacuation of the flow in the pipeline thanks to its large bypass.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (bar) / (psi) | (mm) | (kg) | |
| LKTB100200 | 100 | 200 | 1.5 / 22 | 94 | 380 | 0.5 / 7.3 | 2" | 9.6 |
| LKTB150300 | 150 | 300 | 1.5 / 22 | 145 | 640 | 0.5 / 7.3 | 2" | 10.5 |
| LKTB200500 | 200 | 500 | 1.5 / 22 | 192 | 640 | 0.5 / 7.3 | 4" | 14.0 |
| LKTB300600 | 300 | 600 | 1.5 / 22 | 290 | 640 | 0.5 / 7.3 | 4" | 18.8 |
| LKTB375750 | 375 | 750 | 1.5 / 22 | 354 | 800 | 0.5 / 7.3 | 4" | 25.3 |
| LKTB500800 | 500 | 800 | 1.5 / 22 | 442 | 700 | 0.5 / 7.3 | 6" | 32.9 |
| LKTB5001200 | 500 | 1200 | 1.5 / 22 | 442 | 950 | 0.5 / 7.3 | 8" | 45.9 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (bar) / (psi) | (inch) | (lbs) | |
| LKTB100200 | 4" | 8" | 1.5 / 22 | 3.7" | 15.2" | 0.5 / 7.3 | 2" | 21.1 |
| LKTB150300 | 6" | 12" | 1.5 / 22 | 5.7" | 25.2" | 0.5 / 7.3 | 2" | 23.1 |
| LKTB200500 | 8" | 20" | 1.5 / 22 | 7.6" | 25.2" | 0.5 / 7.3 | 4" | 30.8 |
| LKTB300600 | 12" | 24" | 1.5 / 22 | 11.4" | 25.2" | 0.5 / 7.3 | 4" | 41.4 |
| LKTB375750 | 15" | 30" | 1.5 / 22 | 14.0" | 32.0" | 0.5 / 7.3 | 4" | 55.7 |
| LKTB500800 | 20" | 32" | 1.5 / 22 | 17.4" | 27.5" | 0.5 / 7.3 | 6" | 72.4 |
| LKTB5001200 | 20" | 48" | 1.5 / 22 | 17.4" | 37.4" | 0.5 / 7.3 | 8" | 101 |
