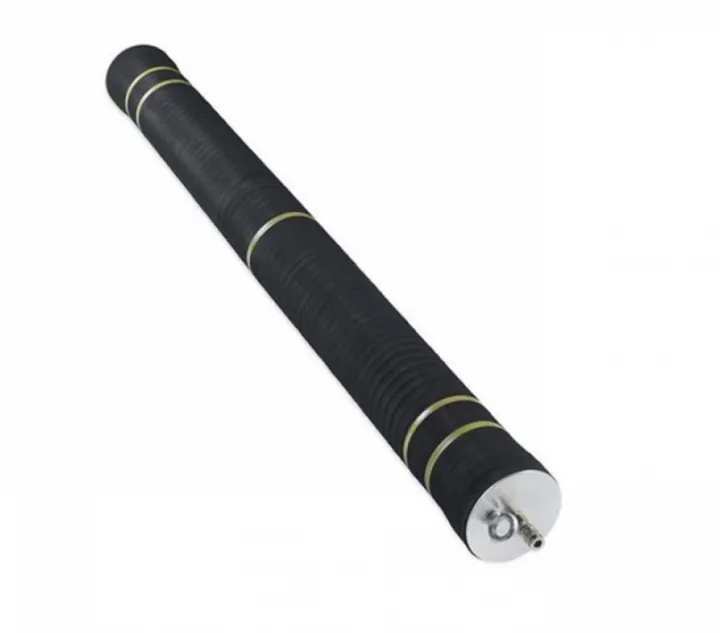

LANG LATERAL PACKERS
ARTKL.NO:TB
Bitte anmelden, um Preise zu sehen.
Maßtabelle (metrisch)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| TB20030010 | 200 | 300 | 2.0 / 29 | 150 | 1000 | 1160 | 3.6 |
| TB20030015 | 200 | 300 | 2.0 / 29 | 150 | 1500 | 1660 | 4.1 |
| TB20030020 | 200 | 300 | 2.0 / 29 | 150 | 2000 | 2160 | 5.2 |
| TB20030030 | 200 | 300 | 2.0 / 29 | 150 | 3000 | 3160 | 11.1 |
| TB20030040 | 200 | 300 | 2.0 / 29 | 150 | 4000 | 4160 | 8.5 |
| TB20030050 | 200 | 300 | 2.0 / 29 | 150 | 5000 | 5160 | 10.5 |
| TB30040010 | 300 | 400 | 1.0 / 15 | 220 | 1000 | 1160 | 11.0 |
| TB30040015 | 300 | 400 | 1.0 / 15 | 220 | 1500 | 1660 | 11.8 |
| TB30040020 | 300 | 400 | 1.0 / 15 | 220 | 2000 | 2160 | 14.1 |
| TB30040030 | 300 | 400 | 1.0 / 15 | 220 | 3000 | 3160 | 18.3 |
| TB30040040 | 300 | 400 | 1.0 / 15 | 220 | 4000 | 4160 | 22.2 |
| TB30040050 | 300 | 400 | 1.0 / 15 | 220 | 5000 | 5160 | 25.8 |
| TB40050015 | 400 | 500 | 1.0 / 15 | 293 | 1500 | 1660 | 23.0 |
| TB40050020 | 400 | 500 | 1.0 / 15 | 293 | 2000 | 2160 | 25.3 |
| TB40050030 | 400 | 500 | 1.0 / 15 | 293 | 3000 | 3160 | 29.5 |
| TB40050040 | 400 | 500 | 1.0 / 15 | 293 | 4000 | 4160 | 33.4 |
| TB40050050 | 400 | 500 | 1.0 / 15 | 293 | 5000 | 5160 | 37.0 |
| TB50060015 | 500 | 600 | 1.0 / 15 | 340 | 1500 | 1660 | 25.0 |
| TB50060020 | 500 | 600 | 1.0 / 15 | 340 | 2000 | 2160 | 29.4 |
| TB50060030 | 500 | 600 | 1.0 / 15 | 340 | 3000 | 3160 | 31.0 |
| TB50060040 | 500 | 600 | 1.0 / 15 | 340 | 4000 | 4160 | 33.0 |
| TB50060050 | 500 | 600 | 1.0 / 15 | 340 | 5000 | 5160 | 37.0 |
| TB60080015 | 600 | 800 | 1.0 / 15 | 375 | 1500 | 1660 | 33.4 |
| TB60080020 | 600 | 800 | 1.0 / 15 | 375 | 2000 | 2160 | 44.5 |
| TB60080030 | 600 | 800 | 1.0 / 15 | 375 | 3000 | 3160 | 50.4 |
| TB700100015 | 700 | 1000 | 1.0 / 15 | 584 | 1500 | 1660 | 45.0 |
| TB700100020 | 700 | 1000 | 1.0 / 15 | 585 | 2000 | 2160 | 60.0 |
| TB700100025 | 700 | 1000 | 1.0 / 15 | 586 | 2500 | 2660 | 75.0 |
| TB700120020 | 700 | 1200 | 1.0 / 15 | 587 | 2000 | 2160 | 61.0 |
| TB700120025 | 700 | 1200 | 1.0 / 15 | 588 | 2500 | 2660 | 77.0 |
| TB1000150020 | 1000 | 1500 | 1.0 / 15 | 860 | 2000 | 2160 | 82.0 |
| TB1000150030 | 1000 | 1500 | 1.0 / 15 | 860 | 3000 | 3160 | 85.0 |
Maßtabelle (metrisch)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| TB20030010 | 200 | 300 | 2.0 / 29 | 150 | 1000 | 1160 | 3.6 |
| TB20030015 | 200 | 300 | 2.0 / 29 | 150 | 1500 | 1660 | 4.1 |
| TB20030020 | 200 | 300 | 2.0 / 29 | 150 | 2000 | 2160 | 5.2 |
| TB20030030 | 200 | 300 | 2.0 / 29 | 150 | 3000 | 3160 | 11.1 |
| TB20030040 | 200 | 300 | 2.0 / 29 | 150 | 4000 | 4160 | 8.5 |
| TB20030050 | 200 | 300 | 2.0 / 29 | 150 | 5000 | 5160 | 10.5 |
| TB30040010 | 300 | 400 | 1.0 / 15 | 220 | 1000 | 1160 | 11.0 |
| TB30040015 | 300 | 400 | 1.0 / 15 | 220 | 1500 | 1660 | 11.8 |
| TB30040020 | 300 | 400 | 1.0 / 15 | 220 | 2000 | 2160 | 14.1 |
| TB30040030 | 300 | 400 | 1.0 / 15 | 220 | 3000 | 3160 | 18.3 |
| TB30040040 | 300 | 400 | 1.0 / 15 | 220 | 4000 | 4160 | 22.2 |
| TB30040050 | 300 | 400 | 1.0 / 15 | 220 | 5000 | 5160 | 25.8 |
| TB40050015 | 400 | 500 | 1.0 / 15 | 293 | 1500 | 1660 | 23.0 |
| TB40050020 | 400 | 500 | 1.0 / 15 | 293 | 2000 | 2160 | 25.3 |
| TB40050030 | 400 | 500 | 1.0 / 15 | 293 | 3000 | 3160 | 29.5 |
| TB40050040 | 400 | 500 | 1.0 / 15 | 293 | 4000 | 4160 | 33.4 |
| TB40050050 | 400 | 500 | 1.0 / 15 | 293 | 5000 | 5160 | 37.0 |
| TB50060015 | 500 | 600 | 1.0 / 15 | 340 | 1500 | 1660 | 25.0 |
| TB50060020 | 500 | 600 | 1.0 / 15 | 340 | 2000 | 2160 | 29.4 |
| TB50060030 | 500 | 600 | 1.0 / 15 | 340 | 3000 | 3160 | 31.0 |
| TB50060040 | 500 | 600 | 1.0 / 15 | 340 | 4000 | 4160 | 33.0 |
| TB50060050 | 500 | 600 | 1.0 / 15 | 340 | 5000 | 5160 | 37.0 |
| TB60080015 | 600 | 800 | 1.0 / 15 | 375 | 1500 | 1660 | 33.4 |
| TB60080020 | 600 | 800 | 1.0 / 15 | 375 | 2000 | 2160 | 44.5 |
| TB60080030 | 600 | 800 | 1.0 / 15 | 375 | 3000 | 3160 | 50.4 |
| TB700100015 | 700 | 1000 | 1.0 / 15 | 584 | 1500 | 1660 | 45.0 |
| TB700100020 | 700 | 1000 | 1.0 / 15 | 585 | 2000 | 2160 | 60.0 |
| TB700100025 | 700 | 1000 | 1.0 / 15 | 586 | 2500 | 2660 | 75.0 |
| TB700120020 | 700 | 1200 | 1.0 / 15 | 587 | 2000 | 2160 | 61.0 |
| TB700120025 | 700 | 1200 | 1.0 / 15 | 588 | 2500 | 2660 | 77.0 |
| TB1000150020 | 1000 | 1500 | 1.0 / 15 | 860 | 2000 | 2160 | 82.0 |
| TB1000150030 | 1000 | 1500 | 1.0 / 15 | 860 | 3000 | 3160 | 85.0 |
Beschreibung
Der Lang Lateral Packer ist für längere Seitenanschlussbereiche oder ausgedehnte Schadstellen entwickelt. Er bietet eine verlängerte Arbeitsfläche, wodurch größere Reparaturzonen in einem Arbeitsgang saniert werden können. Dies sorgt für eine effiziente und gleichmäßige Verarbeitung des Sanierungsmaterials entlang des gesamten Bereichs.
Zusätzliche Informationen
| Gewicht | n. v. |
|---|---|
| Ausführung | TB20030010, TB20030015, TB20030020, TB20030030, TB20030040, TB20030050, TB30040010, TB30040015, TB30040020, TB30040030, TB30040040, TB30040050, TB40050015, TB40050020, TB40050030, tB40050040, TB40050050, TB50060015, TB50060020, TB50060030, TB50060040, TB50060050, TB60080015, TB60080020, TB60080030, TB700100015, TB700100020, TB700100025, TB700120020, TB700120025, TB1000150020, TB1000150030 |
| Durchmesser | 200-1500 mm |
| Arbeitsdruck | 1-2 bar |
