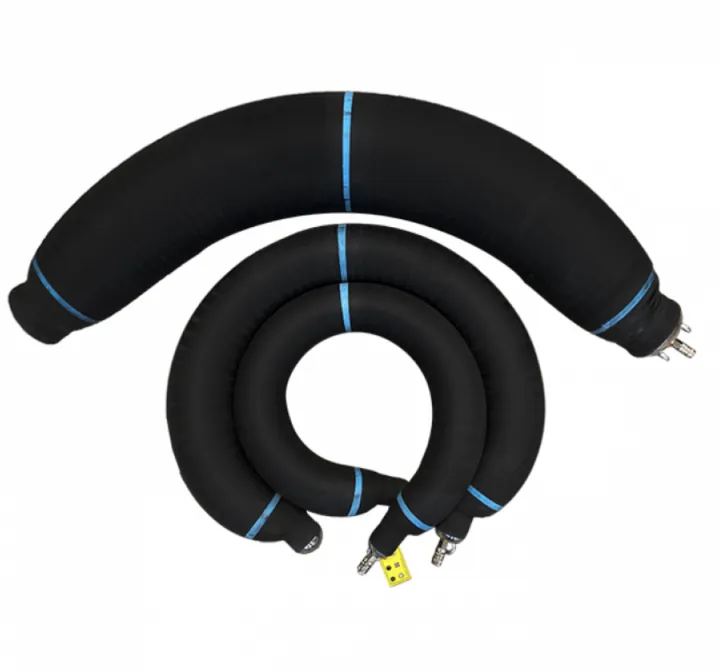

BOGENSANIERUNGSPACKER

ARTKL.NO:DP

Bitte anmelden, um Preise zu sehen.

Maßtabelle (metrisch)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions			Approx. Weight
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Lenght	Total Lenght	Approx. Weight
	(mm)	(mm)	(bar) / (psi)	(mm)	(mm)	(mm)	(kg)
	DP10012	100		2.0 / 29	43	1200	1550
DP10015	100		2.0 / 29	43	1500	1850
DP10020	100		2.0 / 29	43	2000	2350
DP10030	100		2.0 / 29	43	3000	3350
DP10040	100		2.0 / 29	43	4000	4350
DP10050	100		2.0 / 29	43	5000	5350
DP10012512	100	125	2.0 / 29	64	1200	1550
DP10012515	100	125	2.0 / 29	64	1500	1850
DP10012520	100	125	2.0 / 29	64	2000	2350
DP10012530	100	125	2.0 / 29	64	3000	3350
DP10012540	100	125	2.0 / 29	64	4000	4350
DP10012550	100	125	2.0 / 29	64	5000	5350
DP15012	150		2.0 / 29	71	1200	1550
DP15015	150		2.0 / 29	71	1500	1850
DP15020	150		2.0 / 29	71	2000	2350
DP15030	150		2.0 / 29	71	3000	3350
DP15040	150		2.0 / 29	71	4000	4350
DP15050	150		2.0 / 29	71	5000	5350
DP15017012	150	170	2.0 / 29	112	1200	1550
DP15017015	150	170	2.0 / 29	112	1500	1850
DP15017020	150	170	2.0 / 29	112	2000	2350
DP15017030	150	170	2.0 / 29	112	3000	3350
DP15017040	150	170	2.0 / 29	112	4000	4350
DP15017050	150	170	2.0 / 29	112	5000	5350
DP20022515	200	225	2.0 / 29	150	1500	1850
DP20022520	200	225	2.0 / 29	150	2000	2350
DP20022530	200	225	2.0 / 29	150	3000	3350
DP20022540	200	225	2.0 / 29	150	4000	4350
DP20022550	200	225	2.0 / 29	150	5000	5350
DP30015	300		1.5 / 22	214	1500	1850
DP30020	300		1.5 / 22	214	2000	2350
DP30030	300		1.5 / 22	214	3000	3350
DP30040	300		1.5 / 22	214	4000	4350
DP30050	300		1.5 / 22	214	5000	5350
DP40015	400		1.5 / 22	290	1500	1850
DP40020	400		1.5 / 22	290	2000	2350
DP40030	400		1.5 / 22	290	3000	3350
DP40040	400		1.5 / 22	290	4000	4350

Maßtabelle (Zoll / imperial)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions			Approx. Weight
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Lenght	Total Lenght	Approx. Weight
	(inch)	(inch)	(bar) / (psi)	(inch)	(inch)	(inch)	(lbs)
	DP10012	4"		2.0 / 29	1.7"	47.2"	61.0"
DP10015	4"		2.0 / 29	1.7"	59.0"	72.8"
DP10020	4"		2.0 / 29	1.7"	78.8"	92.5"
DP10030	4"		2.0 / 29	1.7"	118.1"	131.8"
DP10040	4"		2.0 / 29	1.7"	157.5"	171.2"
DP10050	4"		2.0 / 29	1.7"	197.0"	210.6"
DP10012512	4"	5"	2.0 / 29	2.5"	47.2"	61.0"
DP10012515	4"	5"	2.0 / 29	2.5"	59.0"	72.8"
DP10012520	4"	5"	2.0 / 29	2.5"	78.8"	92.5"
DP10012530	4"	5"	2.0 / 29	2.5"	118.1"	131.8"
DP10012540	4"	5"	2.0 / 29	2.5"	157.5"	171.2"
DP10012550	4"	5"	2.0 / 29	2.5"	197.0"	210.6"
DP15012	6"		2.0 / 29	2.8"	47.2"	61.0"
DP15015	6"		2.0 / 29	2.8"	59.0"	72.8"
DP15020	6"		2.0 / 29	2.8"	78.8"	92.5"
DP15030	6"		2.0 / 29	2.8"	118.1"	131.8"
DP15040	6"		2.0 / 29	2.8"	157.5"	171.2"
DP15050	6"		2.0 / 29	2.8"	197.0"	210.6"
DP15017012	6"	6.7"	2.0 / 29	4.4"	47.2"	61.0"
DP15017015	6"	6.7"	2.0 / 29	4.4"	59.0"	72.8"
DP15017020	6"	6.7"	2.0 / 29	4.4"	78.8"	92.5"
DP15017030	6"	6.7"	2.0 / 29	4.4"	118.1"	131.8"
DP15017040	6"	6.7"	2.0 / 29	4.4"	157.5"	171.2"
DP15017050	6"	6.7"	2.0 / 29	4.4"	197.0"	210.6"
DP20022515	8"	8.8"	2.0 / 29	6.0"	59.0"	72.8"
DP20022520	8"	8.8"	2.0 / 29	6.0"	78.8"	92.5"
DP20022530	8"	8.8"	2.0 / 29	6.0"	118.1"	131.8"
DP20022540	8"	8.8"	2.0 / 29	6.0"	157.5"	171.2"
DP20022550	8"	8.8"	2.0 / 29	6.0"	197.0"	210.6"
DP30015	12"		1.5 / 22	8.4"	59.0"	72.8"
DP30020	12"		1.5 / 22	8.4"	78.8"	92.5"
DP30030	12"		1.5 / 22	8.4"	118.1"	131.8"
DP30040	12"		1.5 / 22	8.4"	157.5"	171.2"
DP30050	12"		1.5 / 22	8.4"	197.0"	210.6"
DP40015	16"		1.5 / 22	11.4"	59.0"	72.8"
DP40020	16"		1.5 / 22	11.4"	78.8"	92.5"
DP40030	16"		1.5 / 22	11.4"	118.1"	131.8"
DP40040	16"		1.5 / 22	11.4"	157.5"	171.2"

Artikelnummer: n. v. Kategorie: Sanierungs Packer

Beschreibung

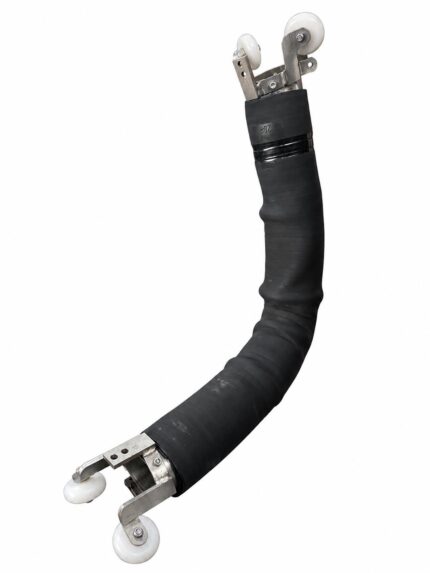

Der Bogensanierungspacker ist speziell für Rohrbögen entwickelt und passt sich flexibel an gebogene Rohrverläufe an. Er ermöglicht eine gleichmäßige Sanierung in Krümmungsbereichen, in denen Standardpacker keine stabile Position halten können.

Zusätzliche Informationen

Ausführung	DP10012, DP10015, DP10020, DP10030, DP10040, DP10050, DP10012512, DP10012515, DP10012520, DP10012530, DP10012540, DP10012550, DP15012, DP15015, DP15020, DP15030, DP15040, DP15050, DP15017012, DP15017015, DP15017020, DP15017030, DP15017040, DP15017050, DP20022515, DP20022520, DP20022530, DP20022540, DP20022550, DP30015, DP30020, DP30030, DP30040, DP30050, DP40015, DP40020, DP40030, DP40040
Durchmesser	100-225 mm
Arbeitsdruck	2-290 bar
