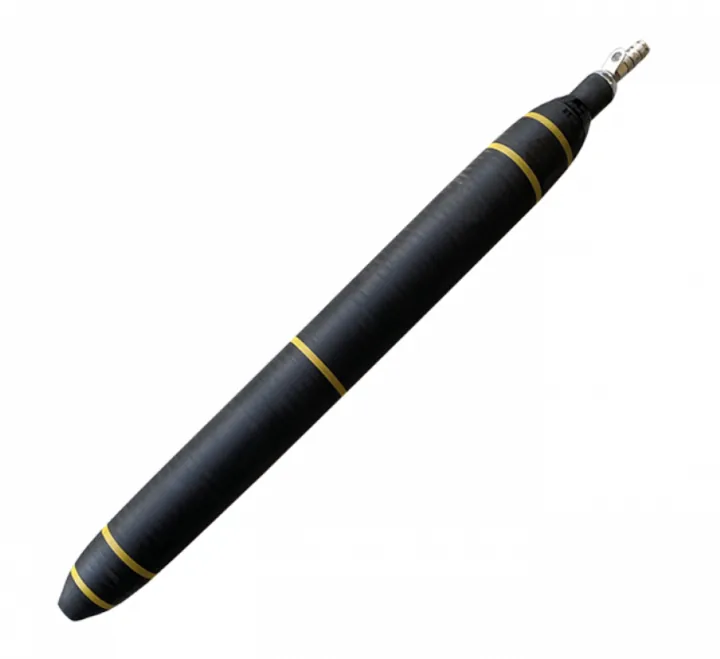

Medusa Packer
ARTKL.NO:MED
Bitte anmelden, um Preise zu sehen.
Maßtabelle (metrisch)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| MED7010006 | 70 | 100 | 3.0 / 44 | 45 | 600 | 870 | 1.0 |
| MED7010010 | 70 | 100 | 3.0 / 44 | 45 | 1000 | 1160 | 1.6 |
| MED7010015 | 70 | 100 | 3.0 / 44 | 45 | 1500 | 1660 | 2.0 |
| MED7010020 | 70 | 100 | 3.0 / 44 | 45 | 2000 | 2160 | 2.7 |
| MED8012510 | 80 | 125 | 3.0 / 44 | 45 | 1000 | 1160 | 1.6 |
| MED8012515 | 80 | 125 | 3.0 / 44 | 45 | 1500 | 1660 | 2.0 |
| MED8012520 | 80 | 125 | 3.0 / 44 | 45 | 2000 | 2160 | 2.7 |
| MED10015010 | 100 | 150 | 2.5 / 36 | 64 | 1000 | 1160 | 3.1 |
| MED10015015 | 100 | 150 | 2.5 / 36 | 64 | 1500 | 1660 | 4.0 |
| MED10015020 | 100 | 150 | 2.5 / 36 | 64 | 2000 | 2160 | 5.5 |
| MED15020010 | 150 | 200 | 2.5 / 36 | 89 | 1000 | 1160 | 3.3 |
| MED15020015 | 150 | 200 | 2.5 / 36 | 89 | 1500 | 1660 | 4.4 |
| MED15020020 | 150 | 200 | 2.5 / 36 | 89 | 2000 | 2160 | 5.8 |
| MED15025010 | 150 | 250 | 2.5 / 36 | 102 | 1000 | 1160 | 4.5 |
| MED15025015 | 150 | 250 | 2.5 / 36 | 102 | 1500 | 1660 | 5.7 |
| MED15025020 | 150 | 250 | 2.5 / 36 | 102 | 2000 | 2160 | 7.1 |
Maßtabelle (Zoll / imperial)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (lbs) | |
| MED7010006 | 2.8" | 4" | 3.0 / 44 | 45 | 23.6" | 34.2" | 2.2 |
| MED7010010 | 2.8" | 4" | 3.0 / 44 | 45 | 39.3" | 45.6" | 3.5 |
| MED7010015 | 2.8" | 4" | 3.0 / 44 | 45 | 59.0" | 65.3" | 4.4 |
| MED7010020 | 2.8" | 4" | 3.0 / 44 | 45 | 78.8" | 85.0" | 5.9 |
| MED8012510 | 3" | 5" | 3.0 / 44 | 45 | 39.3" | 45.6" | 3.5 |
| MED8012515 | 3" | 5" | 3.0 / 44 | 45 | 59.0" | 65.3" | 4.4 |
| MED8012520 | 3" | 5" | 3.0 / 44 | 45 | 78.8" | 85.0" | 5.9 |
| MED10015010 | 3" | 5" | 2.5 / 36 | 64 | 39.3" | 45.6" | 6.8 |
| MED10015015 | 3" | 5" | 2.5 / 36 | 64 | 59.0" | 65.3" | 8.8 |
| MED10015020 | 3" | 5" | 2.5 / 36 | 64 | 78.8" | 85.0" | 12.1 |
| MED15020010 | 6" | 8" | 2.5 / 36 | 89 | 39.3" | 45.6" | 7.2 |
| MED15020015 | 6" | 8" | 2.5 / 36 | 89 | 59.0" | 65.3" | 9.6 |
| MED15020020 | 6" | 8" | 2.5 / 36 | 89 | 78.8" | 85.0" | 12.7 |
| MED15025010 | 6" | 10" | 2.5 / 36 | 102 | 39.3" | 45.6" | 9.9 |
| MED15025015 | 6" | 10" | 2.5 / 36 | 102 | 59.0" | 65.3" | 12.5 |
| MED15025020 | 6" | 10" | 2.5 / 36 | 102 | 78.8" | 85.0" | 15.6 |
Beschreibung
Der Medusa Packer ist ein Spezialpacker für komplexe Rohrverzweigungen und mehrere Anschlussbereiche. Durch seine spezielle Bauform kann er gleichzeitig mehrere Sanierungszonen abdecken oder schwer zugängliche Bereiche erreichen. Er wird insbesondere bei komplexen Rohrnetzen eingesetzt.
Zusätzliche Informationen
| Gewicht | n. v. |
|---|---|
| Ausführung | MED306006, MED306010, MED306015, MED306020, MED507006, MED507010, MED507015, MED507020, MED7010006, MED7010010, MED7010015, MED7010020, MED8012506, MED8012510, MED8012515, MED8012520, MED10015006, MED10015010, MED10015015, MED10015020, MED15020006, MED15020010, MED15020015, MED15020020, MED15025006, MED15025010, MED15025015, MED15025020 |
| Durchmesser | 70-250 mm |
| Arbeitsdruck | 2.5-3 bar |
