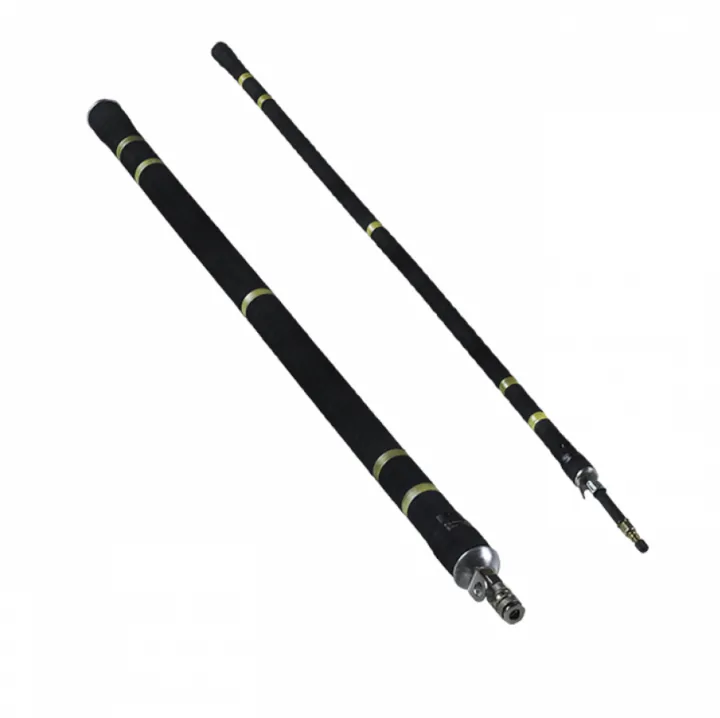

MINI LATERAL PACKERS
ARTKL.NO:TB
Bitte anmelden, um Preise zu sehen.
Maßtabelle (metrisch)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| TB255006 | 25 | 50 | 3.0 / 44 | 21 | 600 | 770 | 0.3 |
| TB255010 | 25 | 50 | 3.0 / 44 | 21 | 1000 | 1170 | 0.35 |
| TB255015 | 25 | 50 | 3.0 / 44 | 21 | 1500 | 1670 | 0.4 |
| TB255020 | 25 | 50 | 3.0 / 44 | 21 | 2000 | 2170 | 0.5 |
| TB255030 | 25 | 50 | 3.0 / 44 | 21 | 3000 | 3170 | 0.6 |
| TB255040 | 25 | 50 | 3.0 / 44 | 21 | 4000 | 4170 | 0.7 |
| TB255050 | 25 | 50 | 3.0 / 44 | 21 | 5000 | 5170 | 0.8 |
| TB306010 | 30 | 60 | 3.0 / 44 | 25 | 1000 | 1170 | 0.4 |
| TB306015 | 30 | 60 | 3.0 / 44 | 25 | 1500 | 1670 | 0.5 |
| TB306020 | 30 | 60 | 3.0 / 44 | 25 | 2000 | 2170 | 0.7 |
| TB306030 | 30 | 60 | 3.0 / 44 | 25 | 3000 | 3170 | 0.8 |
| TB306040 | 30 | 60 | 3.0 / 44 | 25 | 4000 | 4170 | 1.3 |
| TB306050 | 30 | 60 | 3.0 / 44 | 25 | 5000 | 5170 | 1.6 |
| TB507010 | 50 | 70 | 3.0 / 44 | 34 | 1000 | 1170 | 0.6 |
| TB507015 | 50 | 70 | 3.0 / 44 | 34 | 1500 | 1670 | 0.8 |
| TB507020 | 50 | 70 | 3.0 / 44 | 34 | 2000 | 2170 | 1.3 |
| TB507030 | 50 | 70 | 3.0 / 44 | 34 | 3000 | 3170 | 1.6 |
| TB507040 | 50 | 70 | 3.0 / 44 | 34 | 4000 | 4170 | 2.5 |
| TB507050 | 50 | 70 | 3.0 / 44 | 34 | 5000 | 5170 | 2.8 |
Maßtabelle (Zoll / imperial)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (lbs) | |
| TB255006 | 1" | 2" | 3.0 / 44 | 0.8" | 23.6" | 30.3" | 0.6 |
| TB255010 | 1" | 2" | 3.0 / 44 | 0.8" | 39.3" | 46.0" | 0.7 |
| TB255015 | 1" | 2" | 3.0 / 44 | 0.8" | 59.0" | 65.7" | 0.8 |
| TB255020 | 1" | 2" | 3.0 / 44 | 0.8" | 78.8" | 85.5" | 1.1 |
| TB255030 | 1" | 2" | 3.0 / 44 | 0.8" | 118" | 124.8" | 1.3 |
| TB255040 | 1" | 2" | 3.0 / 44 | 0.8" | 157" | 164" | 1.5 |
| TB255050 | 1" | 2" | 3.0 / 44 | 0.8" | 197" | 203.5" | 1.7 |
| TB306010 | 1.1" | 2.4" | 3.0 / 44 | 1" | 39.3" | 46.0" | 0.8 |
| TB306015 | 1.1" | 2.4" | 3.0 / 44 | 1" | 59.0" | 65.7" | 1.1 |
| TB306020 | 1.1" | 2.4" | 3.0 / 44 | 1" | 78.8" | 85.5" | 1.5 |
| TB306030 | 1.1" | 2.4" | 3.0 / 44 | 1" | 118" | 124.8" | 1.7 |
| TB306040 | 1.1" | 2.4" | 3.0 / 44 | 1" | 157" | 164" | 2.8 |
| TB306050 | 1.1" | 2.4" | 3.0 / 44 | 1" | 197" | 203.5" | 3.5 |
| TB507010 | 2" | 2.8" | 3.0 / 44 | 1.3" | 39.3" | 46.0" | 1.3 |
| TB507015 | 2" | 2.8" | 3.0 / 44 | 1.3" | 59.0" | 65.7" | 1.7 |
| TB507020 | 2" | 2.8" | 3.0 / 44 | 1.3" | 78.8" | 85.5" | 2.8 |
| TB507030 | 2" | 2.8" | 3.0 / 44 | 1.3" | 118" | 124.8" | 3.5 |
| TB507040 | 2" | 2.8" | 3.0 / 44 | 1.3" | 157" | 164" | 5.5 |
| TB507050 | 2" | 2.8" | 3.0 / 44 | 1.3" | 197" | 203.5" | 6.1 |
Beschreibung

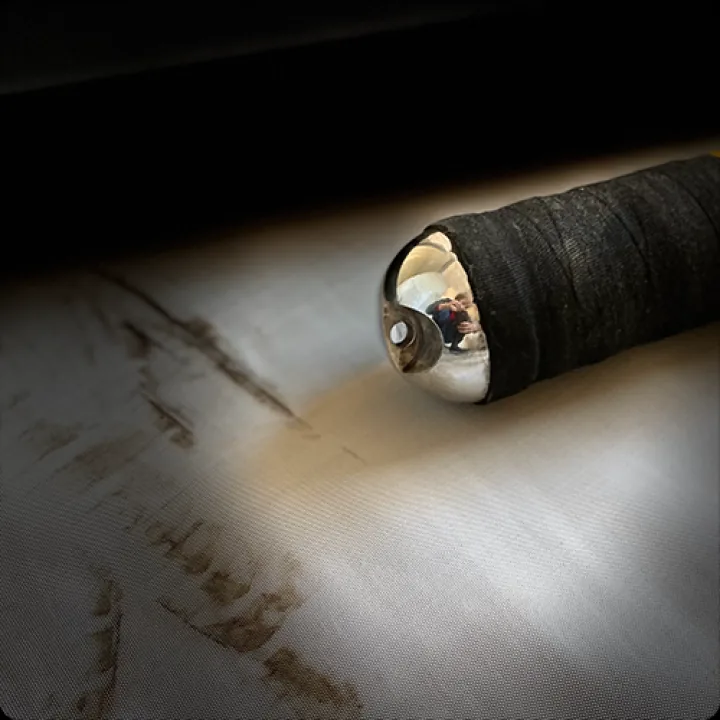

Der Mini Lateral Packer ist speziell für kleine Rohrdurchmesser und kurze Seitenanschlüsse konzipiert. Er wird zur punktuellen Sanierung von Hausanschlüssen oder Nebenleitungen eingesetzt. Durch seine kompakte Bauweise ermöglicht er eine präzise Positionierung auch in sehr engen Rohrabschnitten und gewährleistet eine kontrollierte Applikation des Sanierungsmaterials.
Zusätzliche Informationen
| Gewicht | n. v. |
|---|---|
| Ausführung | TB255006, TB255010, TB255015, TB255020, TB255030, TB255040, TB255050, TB306010, TB306015, TB306020, TB306030, TB306040, TB306050, TB507010, TB507015, TB507020, TB507030, TB507040, TB507050 |
| Durchmesser | 25-70 mm |
| Arbeitsdruck | 3-3 bar |
