MINI LATERAL PACKERS
Bitte anmelden, um Preise zu sehen.
LANG LATERAL PACKERS
Bitte anmelden, um Preise zu sehen.

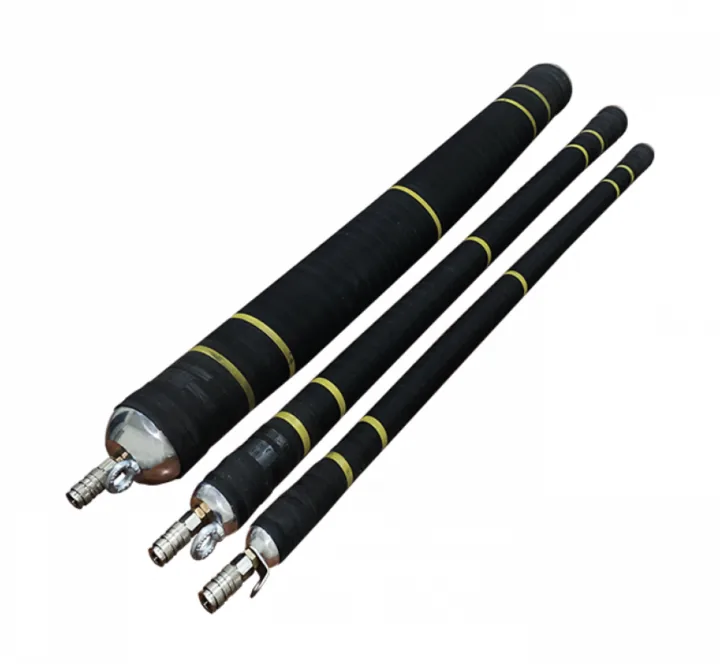

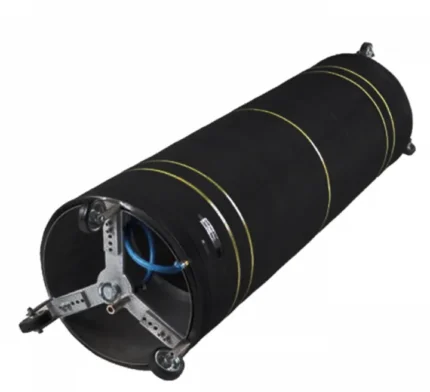

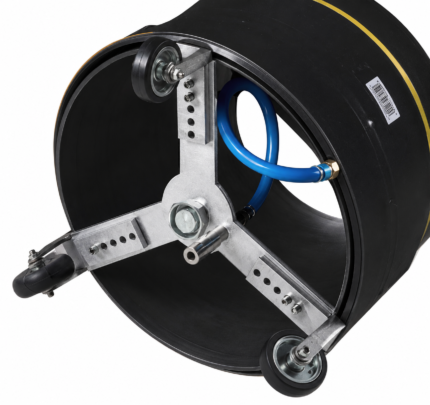

LATERAL PACKERS
ARTKL.NO:TB
Bitte anmelden, um Preise zu sehen.
Maßtabelle (metrisch)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| TB7010006 | 70 | 100 | 3.0 / 44 | 39 | 600 | 870 | 0.6 |
| TB7010010 | 70 | 100 | 3.0 / 44 | 39 | 1000 | 1170 | 0.8 |
| TB7010015 | 70 | 100 | 3.0 / 44 | 39 | 1500 | 1670 | 1.1 |
| TB7010020 | 70 | 100 | 3.0 / 44 | 39 | 2000 | 2170 | 1.4 |
| TB7010030 | 70 | 100 | 3.0 / 44 | 39 | 3000 | 3170 | 2.0 |
| TB7010040 | 70 | 100 | 3.0 / 44 | 39 | 4000 | 4170 | 2.8 |
| TB7010050 | 70 | 100 | 3.0 / 44 | 39 | 5000 | 5170 | 3.4 |
| TB8012510 | 80 | 125 | 3.0 / 44 | 45 | 1000 | 1170 | 1.4 |
| TB8012515 | 80 | 125 | 3.0 / 44 | 45 | 1500 | 1670 | 2.0 |
| TB8012520 | 80 | 125 | 3.0 / 44 | 45 | 2000 | 2170 | 2.3 |
| TB8012530 | 80 | 125 | 3.0 / 44 | 45 | 3000 | 3170 | 4.2 |
| TB8012540 | 80 | 125 | 3.0 / 44 | 45 | 4000 | 4170 | 5.0 |
| TB8012550 | 80 | 125 | 3.0 / 44 | 45 | 5000 | 5170 | 5.7 |
| TB10015010 | 100 | 150 | 2.5 / 36 | 64 | 1000 | 1170 | 1.6 |
| TB10015015 | 100 | 150 | 2.5 / 36 | 64 | 1500 | 1670 | 2.2 |
| TB10015020 | 100 | 150 | 2.5 / 36 | 64 | 2000 | 2170 | 2.6 |
| TB10015030 | 100 | 150 | 2.5 / 36 | 64 | 3000 | 3170 | 4.7 |
| TB10015040 | 100 | 150 | 2.5 / 36 | 64 | 4000 | 4170 | 5.7 |
| TB10015050 | 100 | 150 | 2.5 / 36 | 64 | 5000 | 5170 | 6.5 |
| TB15020010 | 150 | 200 | 2.5 / 36 | 89 | 1000 | 1170 | 1.9 |
| TB15020015 | 150 | 200 | 2.5 / 36 | 89 | 1500 | 1670 | 2.4 |
| TB15020020 | 150 | 200 | 2.5 / 36 | 89 | 2000 | 2170 | 2.8 |
| TB15020030 | 150 | 200 | 2.5 / 36 | 89 | 3000 | 3170 | 3.8 |
| TB15020040 | 150 | 200 | 2.5 / 36 | 89 | 4000 | 4170 | 4.9 |
| TB15020050 | 150 | 200 | 2.5 / 36 | 89 | 5000 | 5170 | 5.3 |
| TB15025010 | 150 | 250 | 2.5 / 36 | 102 | 1000 | 1170 | 2.2 |
| TB15025015 | 150 | 250 | 2.5 / 36 | 102 | 1500 | 1670 | 2.7 |
| TB15025020 | 150 | 250 | 2.5 / 36 | 102 | 2000 | 2170 | 3.2 |
| TB15025030 | 150 | 250 | 2.5 / 36 | 102 | 3000 | 3170 | 4.2 |
| TB15025040 | 150 | 250 | 2.5 / 36 | 102 | 4000 | 4170 | 5.2 |
| TB15025050 | 150 | 250 | 2.5 / 36 | 102 | 5000 | 5170 | 6.2 |
Maßtabelle (Zoll / imperial)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (kg) | |
| TB7010006 | 2.8" | 4" | 3.0 / 44 | 1.5" | 23.6" | 34.0" | 1.3 |
| TB7010010 | 2.8" | 4" | 3.0 / 44 | 1.5" | 39.3" | 46.0" | 1.7 |
| TB7010015 | 2.8" | 4" | 3.0 / 44 | 1.5" | 59.0" | 65.7" | 2.4 |
| TB7010020 | 2.8" | 4" | 3.0 / 44 | 1.5" | 78.8" | 85.5" | 3.0 |
| TB7010030 | 2.8" | 4" | 3.0 / 44 | 1.5" | 118" | 124.8" | 4.4 |
| TB7010040 | 2.8" | 4" | 3.0 / 44 | 1.5" | 157" | 164" | 6.1 |
| TB7010050 | 2.8" | 4" | 3.0 / 44 | 1.5" | 197" | 203.5" | 7.5 |
| TB8012510 | 3" | 5" | 3.0 / 44 | 1.7" | 39.3" | 46.0" | 3.0 |
| TB8012515 | 3" | 5" | 3.0 / 44 | 1.7" | 59.0" | 65.7" | 4.4 |
| TB8012520 | 3" | 5" | 3.0 / 44 | 1.7" | 78.8" | 85.5" | 5.0 |
| TB8012530 | 3" | 5" | 3.0 / 44 | 1.7" | 118" | 124.8" | 9.2 |
| TB8012540 | 3" | 5" | 3.0 / 44 | 1.7" | 157" | 164" | 11.0 |
| TB8012550 | 3" | 5" | 3.0 / 44 | 1.7" | 197" | 203.5" | 12.5 |
| TB10015010 | 4" | 6" | 2.5 / 36 | 2.5" | 39.3" | 46.0" | 3.5 |
| TB10015015 | 4" | 6" | 2.5 / 36 | 2.5" | 59.0" | 65.7" | 4.8 |
| TB10015020 | 4" | 6" | 2.5 / 36 | 2.5" | 78.8" | 85.5" | 5.7 |
| TB10015030 | 4" | 6" | 2.5 / 36 | 2.5" | 118" | 124.8" | 10.3 |
| TB10015040 | 4" | 6" | 2.5 / 36 | 2.5" | 157" | 164" | 12.5 |
| TB10015050 | 4" | 6" | 2.5 / 36 | 2.5" | 197" | 203.5" | 14.3 |
| TB15020010 | 6" | 8" | 2.5 / 36 | 3.5" | 39.3" | 46.0" | 4.1 |
| TB15020015 | 6" | 8" | 2.5 / 36 | 3.5" | 59.0" | 65.7" | 5.3 |
| TB15020020 | 6" | 8" | 2.5 / 36 | 3.5" | 78.8" | 85.5" | 6.1 |
| TB15020030 | 6" | 8" | 2.5 / 36 | 3.5" | 118" | 124.8" | 8.3 |
| TB15020040 | 6" | 8" | 2.5 / 36 | 3.5" | 157" | 164" | 10.8 |
| TB15020050 | 6" | 8" | 2.5 / 36 | 3.5" | 197" | 203.5" | 11.6 |
| TB15025010 | 6" | 10" | 2.5 / 36 | 4.2" | 39.3" | 46.0" | 4.8 |
| TB15025015 | 6" | 10" | 2.5 / 36 | 4.2" | 59.0" | 65.7" | 6.0 |
| TB15025020 | 6" | 10" | 2.5 / 36 | 4.2" | 78.8" | 85.5" | 7.0 |
| TB15025030 | 6" | 10" | 2.5 / 36 | 4.2" | 118" | 124.8" | 9.2 |
| TB15025040 | 6" | 10" | 2.5 / 36 | 4.2" | 157" | 164" | 11.4 |
| TB15025050 | 6" | 10" | 2.5 / 36 | 4.2" | 197" | 203.5" | 13.6 |
Beschreibung
Der Lateral Packer wird zur Sanierung von Seitenanschlüssen (Laterals) in Hauptrohren verwendet. Er ermöglicht die gezielte Abdichtung und Reparatur von Anschlussbereichen, ohne das Hauptrohrsystem zu beeinträchtigen. Die Konstruktion
sorgt für eine gleichmäßige Druckverteilung und eine sichere Fixierung während des Sanierungsprozesses.
Zusätzliche Informationen
| Gewicht | n. v. |
|---|---|
| Ausführung | TB7010006, TB7010010, TB7010015, TB7010020, TB7010030, TB7010040, TB7010050, TB8012510, TB8012515, TB8012520, TB8012530, TB8012540, TB8012550, TB10015010, TB10015015, TB10015020, TB10015030, TB10015040, TB15020010, TB15020015, TB15020020, TB15020030, TB15020040, TB15020050, TB15025010, TB15025015, TB15025020, TB15025030, TB15025040, TB15025050, TB10015050 |
| Durchmesser | 70-250 mm |
| Arbeitsdruck | 2.5-3 bar |
