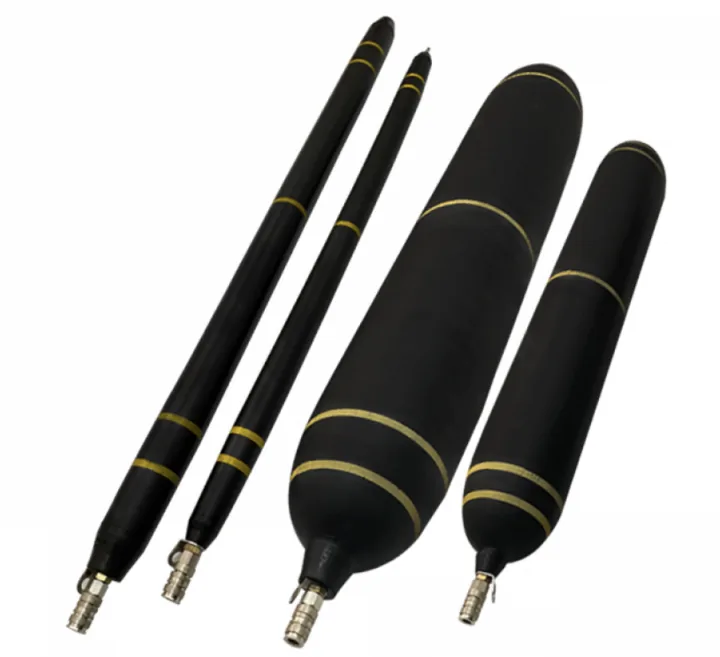

Name: MULTI DIMENSION LATERAL PACKER
SKU: 30502

MULTI DIMENSION LATERAL PACKER

ARTKL.NO:PTB

Bitte anmelden, um Preise zu sehen.

Maßtabelle (metrisch)

Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions
Min. Diameter	Max. Diameter (mm)	Max. Working Pressure	Diameter	Lenght	Total Lenght
(mm)	(mm)	(bar) / (psi)	(mm)	(mm)	(mm)
PTB257015	25	70	4.0 / 58	20	1500	1660
PTB257025	25	70	4.0 / 58	20	2500	2660
PTB257030	25	70	4.0 / 58	20	3000	3160
PTB257040	25	70	4.0 / 58	20	4000	4160
PTB257050	25	70	4.0 / 58	20	5000	5160
PTB257060	25	70	4.0 / 58	20	6000	6160
PTB5012510	50	125	4.0 / 58	40	1000	1160
PTB5012515	50	125	4.0 / 58	40	1500	1660
PTB5012525	50	125	4.0 / 58	40	2500	2660
PTB5012530	50	125	4.0 / 58	40	3000	3160
PTB5012540	50	125	4.0 / 58	40	4000	4160
PTB5012550	50	125	4.0 / 58	40	5000	5160
PTB5012560	50	125	4.0 / 58	40	6000	6160
PTB8020010	80	200	3.0 / 44	60	1000	1160
PTB8020015	80	200	3.0 / 44	60	1500	1660
PTB8020020	80	200	3.0 / 44	60	2500	2660
PTB8020030	80	200	3.0 / 44	60	3000	3160
PTB8020040	80	200	3.0 / 44	60	4000	4160
PTB8020050	80	200	3.0 / 44	60	5000	5160
PTB8020060	80	200	3.0 / 44	60	6000	6160
PTB20040010	200	400	3.0 / 44	158	1000	1160
PTB20040015	200	400	3.0 / 44	158	1500	1660
PTB20040020	200	400	3.0 / 44	158	2000	2660
PTB20040030	200	400	3.0 / 44	158	3000	3160
PTB25060010	250	600	2.5 / 36	220	1000	1160
PTB25060015	250	600	2.5 / 36	220	1500	1660
PTB25060020	250	600	2.5 / 36	220	2000	2660
PTB25060030	250	600	2.5 / 36	220	3000	3160

Maßtabelle (Zoll / imperial)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Lenght	Total Lenght
	(inch)	(inch)	(bar) / (psi)	(inch)	(inch)	(inch)
	PTB257010	1"	2.8"	4.0 / 58	0.7"	39.3"	45.6"
PTB257015	1"	2.8"	4.0 / 58	0.7"	59.0"	65.3"
PTB257025	1"	2.8"	4.0 / 58	0.7"	98.5"	104.8"
PTB257030	1"	2.8"	4.0 / 58	0.7"	118.1"	124.4"
PTB257040	1"	2.8"	4.0 / 58	0.7"	157.5"	163.7"
PTB257050	1"	2.8"	4.0 / 58	0.7"	197.0"	203.1"
PTB257060	1"	2.8"	4.0 / 58	0.7"	236.2"	242.5"
PTB5012510	2"	5"	4.0 / 58	1.5"	39.3"	45.6"
PTB5012515	2"	5"	4.0 / 58	1.5"	59.0"	65.3"
PTB5012525	2"	5"	4.0 / 58	1.5"	98.5"	104.8"
PTB5012530	2"	5"	4.0 / 58	1.5"	118.1"	124.4"
PTB5012540	2"	5"	4.0 / 58	1.5"	157.5"	163.7"
PTB5012550	2"	5"	4.0 / 58	1.5"	197.0"	203.1"
PTB5012560	2"	5"	4.0 / 58	1.5"	236.2"	242.5"
PTB8020010	3"	8"	3.0 / 44	2.3"	39.3"	45.6"
PTB8020015	3"	8"	3.0 / 44	2.3"	59.0"	65.3"
PTB8020020	3"	8"	3.0 / 44	2.3"	78.6"	85.0"
PTB8020030	3"	8"	3.0 / 44	2.3"	118.1"	124.4"
PTB8020040	3"	8"	3.0 / 44	2.3"	157.5"	163.7"
PTB8020050	3"	8"	3.0 / 44	2.3"	197.0"	203.1"
PTB8020060	3"	8"	3.0 / 44	2.3"	236.2"	242.5"
PTB20040010	8"	16"	3.0 / 44	6.2"	39.3"	45.6"
PTB20040015	8"	16"	3.0 / 44	6.2"	59.0"	65.3"
PTB20040020	8"	16"	3.0 / 44	6.2"	78.6"	104.8"
PTB20040030	8"	16"	3.0 / 44	6.2"	118.1"	124.4"
PTB25060010	10"	24"	2.5 / 36	8.6"	39.3"	45.6"
PTB25060015	10"	24"	2.5 / 36	8.6"	59.0"	65.3"
PTB25060020	10"	24"	2.5 / 36	8.6"	78.6"	104.8"
PTB25060030	10"	24"	2.5 / 36	8.6"	118.1"	124.4"

Artikelnummer: n. v. Kategorie: Sanierungs Packer

Beschreibung

Der Multi Dimension Packer ist ein flexibler Universalpacker, der für unterschiedliche Rohrdurchmesser und Geometrien eingesetzt werden kann. Er passt sich variablen Rohrbedingungen an und eignet sich besonders für wechselnde Einsatzbereiche innerhalb eines Rohrsystems.

Zusätzliche Informationen

Ausführung	PTB8020010, PTB8020015, PTB8020020, PTB8020030, PTB8020040, PTB8020050, PTB20040010, PTB20040015, PTB20040020, PTB20040030, PTB25060010, PTB25060015, PTB25060020, PTB8020045, PTB8020035, PTB8020025, PTB8020005, PTB5015050, PTB5015045, PTB5015040, PTB5015035, PTB5015030, PTB5015025, PTB5015020, PTB5015015, PTB5015010, PTB5015005, PTB4010050, PTB4010045, PTB4010040, PTB4010035, PTB4010030, PTB4010025, PTB4010020, PTB4010015, PTB4010010, PTB4010007, PTB4010005, PTB307050, PTB307045, PTB307040, PTB307035, PTB307030, PTB307025, PTB307020, PTB307015, PTB307010, PTB307005, PTB20040025
Durchmesser	25-600 mm
Arbeitsdruck	2.5-4 bar
