Name: FLEXIBLE PACKERS MIT BY-PASS
SKU: 30640

FLEXIBLE PACKERS MIT BY-PASS

ARTKL.NO:BTB

Bitte anmelden, um Preise zu sehen.

Maßtabelle (metrisch)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions			By-Pass Size	Approx. Weight
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Lenght	Total Lenght	By-Pass Size	Approx. Weight
	(mm)	(mm)	(bar) / (psi)	(mm)	(mm)	(mm)	(mm)	(kg)
	BTB10015010	100	150	2.5 / 36	68	1000	1350	NA	3.5
BTB10015015	100	150	2.5 / 36	68	1500	18550	NA	4.0
BTB10015020	100	150	2.5 / 36	68	2000	2350	NA	4.5
BTB10015025	100	150	2.5 / 36	68	2500	2850	NA	5.0
BTB10015030	100	150	2.5 / 36	68	3000	3350	NA	5.5
BTB10015040	100	150	2.5 / 36	68	4000	4350	NA	6.0
BTB10015050	100	150	2.5 / 36	68	5000	5350	NA	7.0
BTB15025010	150	250	2.5 / 36	112	1000	1350	2"	8.3
BTB15025015	150	250	2.5 / 36	112	1500	18550	2"	9.4
BTB15025020	150	250	2.5 / 36	112	2000	2350	2"	12.0
BTB15025025	150	250	2.5 / 36	112	2500	2850	2"	17.0
BTB15025030	150	250	2.5 / 36	112	3000	3350	2"	18.0
BTB15025040	150	250	2.5 / 36	112	4000	4350	2"	20.0
BTB15025050	150	250	2.5 / 36	112	5000	5350	2"	23.0
BTB20030010	200	300	2.0 / 29	158	1000	1350	2"	9.5
BTB20030015	200	300	2.0 / 29	158	1500	18550	2"	11.7
BTB20030020	200	300	2.0 / 29	158	2000	2350	2"	13.5
BTB20030030	200	300	2.0 / 29	158	3000	3350	2"	16.0
BTB20030040	200	300	2.0 / 29	158	4000	4350	2"	20.0
BTB20030050	200	300	2.0 / 29	158	5000	5350	2"	24.0
BTB30040010	300	400	1.5 / 22	220	1000	1350	3"	16.0
BTB30040015	300	400	1.5 / 22	220	1500	18550	3"	18.0
BTB30040020	300	400	1.5 / 22	220	2000	2350	3"	22.0
BTB30040030	300	400	1.5 / 22	220	3000	3350	3"	26.0
BTB30040040	300	400	1.5 / 22	220	4000	4350	3"	30.0
BTB30040050	300	400	1.5 / 22	220	5000	5350	3"	34.0
BTB40060015	400	600	1.0 / 15	340	1500	18550	3"	28.0
BTB40060020	400	600	1.0 / 15	340	2000	2350	3"	33.0
BTB40060030	400	600	1.0 / 15	340	3000	3350	3"	41.0
BTB60080015	600	800	1.0 / 15	375	1500	18550	3"	39.0
BTB60080020	600	800	1.0 / 15	375	2000	2350	3"	42.0
BTB60080030	600	800	1.0 / 15	375	3000	3350	3"	48.0
BTB700100015	700	1000	1.0 / 15	584	1500	18550	3"	60.7
BTB700100020	700	1000	1.0 / 15	584	2000	2350	3"	70.1
BTB700100025	700	1000	1.0 / 15	584	2500	2850	3"	74.7
BTB700120020	700	1200	1.0 / 15	584	2000	2350	3"	70.1
BTB700120025	700	1200	1.0 / 15	584	2500	2850	3"	74.7
BTB1000150020	1000	1500	1.0 / 15	860	2000	2350	3"	78.1
BTB1000150030	1000	1500	1.0 / 15	860	3000	3350	3"	85.1

Maßtabelle (Zoll / imperial)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions			By-Pass Size	Approx. Weightt
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Lenght	Total Lenght	By-Pass Size	Approx. Weightt
	(inch)	(inch)	(bar) / (psi)	(inch)	(inch)	(inch)	(inch)	(lbs)
	BTB10015010	4"	6"	2.5 / 36	2.7"	39.3"	53.1"	NA	7.7
BTB10015015	4"	6"	2.5 / 36	2.7"	59.0"	18.5"	NA	8.8
BTB10015020	4"	6"	2.5 / 36	2.7"	78.8"	92.5"	NA	9.9
BTB10015025	4"	6"	2.5 / 36	2.7"	98.5"	112.2"	NA	11.0
BTB10015030	4"	6"	2.5 / 36	2.7"	118.1"	131.8"	NA	11.0
BTB10015040	4"	6"	2.5 / 36	2.7"	157.5"	171.2"	NA	31.2
BTB10015050	4"	6"	2.5 / 36	2.7"	197.0"	210.6"	NA	15.4
BTB15025010	6"	10"	2.5 / 36	4.4"	39.3"	53.1"	2"	18.3
BTB15025015	6"	10"	2.5 / 36	4.4"	59.0"	18.5"	2"	20.7
BTB15025020	6"	10"	2.5 / 36	4.4"	78.8"	92.5"	2"	26.5
BTB15025025	6"	10"	2.5 / 36	4.4"	98.5"	112.2"	2"	30.8
BTB15025030	6"	10"	2.5 / 36	4.4"	118.1"	131.8"	2"	37.5
BTB15025040	6"	10"	2.5 / 36	4.4"	157.5"	171.2"	2"	44.0
BTB15025050	6"	10"	2.5 / 36	4.4"	197.0"	210.6"	2"	50.7
BTB20030010	8"	12"	2.0 / 29	6.2"	39.3"	53.1"	2"	20.9
BTB20030015	8"	12"	2.0 / 29	6.2"	59.0"	18.5"	2"	25.8
BTB20030020	8"	12"	2.0 / 29	6.2"	78.8"	92.5"	2"	29.7
BTB20030030	8"	12"	2.0 / 29	6.2"	118.1"	131.8"	2"	35.3
BTB20030040	8"	12"	2.0 / 29	6.2"	157.5"	171.2"	2"	44.0
BTB20030050	8"	12"	2.0 / 29	6.2"	197.0"	210.6"	2"	53.0
BTB30040010	12"	16"	1.5 / 22	8.6"	39.3"	53.1"	3"	35.3
BTB30040015	12"	16"	1.5 / 22	8.6"	59.0"	18.5"	3"	39.6
BTB30040020	12"	16"	1.5 / 22	8.6"	78.8"	92.5"	3"	48.5
BTB30040030	12"	16"	1.5 / 22	8.6"	118.1"	131.8"	3"	57.3
BTB30040040	12"	16"	1.5 / 22	8.6"	157.5"	171.2"	3"	66.1
BTB30040050	12"	16"	1.5 / 22	8.6"	197.0"	210.6"	3"	75.0
BTB40060015	16"	24"	1.0 / 15	13.3"	59.0"	18.5"	3"	61.7
BTB40060020	16"	24"	1.0 / 15	13.3"	78.8"	92.5"	3"	72.7
BTB40060030	16"	24"	1.0 / 15	13.3"	118.1"	131.8"	3"	90.3
BTB60080015	24"	32"	1.0 / 15	14.7"	59.0"	18.5"	3"	86.0
BTB60080020	24"	32"	1.0 / 15	14.7"	78.8"	92.5"	3"	92.5
BTB60080030	24"	32"	1.0 / 15	14.7"	118.1"	131.8"	3"	105.8
BTB700100015	28"	40"	1.0 / 15	23"	59.0"	18.5"	3"
BTB700100020	28"	40"	1.0 / 15	23"	78.8"	92.5"	3"
BTB700100025	28"	40"	1.0 / 15	23"	98.5"	112.2"	3"
BTB700120020	28"	48"	1.0 / 15	23"	78.8"	92.5"	3"
BTB700120025	28"	48"	1.0 / 15	23"	98.5"	112.2"	3"
BTB1000150020	40"	60"	1.0 / 15	34"	78.8"	92.5"	3"
BTB1000150030	40"	60"	1.0 / 15	34"	118.1"	131.8"	3"	163.1

Artikelnummer: n. v. Kategorie: Sanierungs Packer

Beschreibung

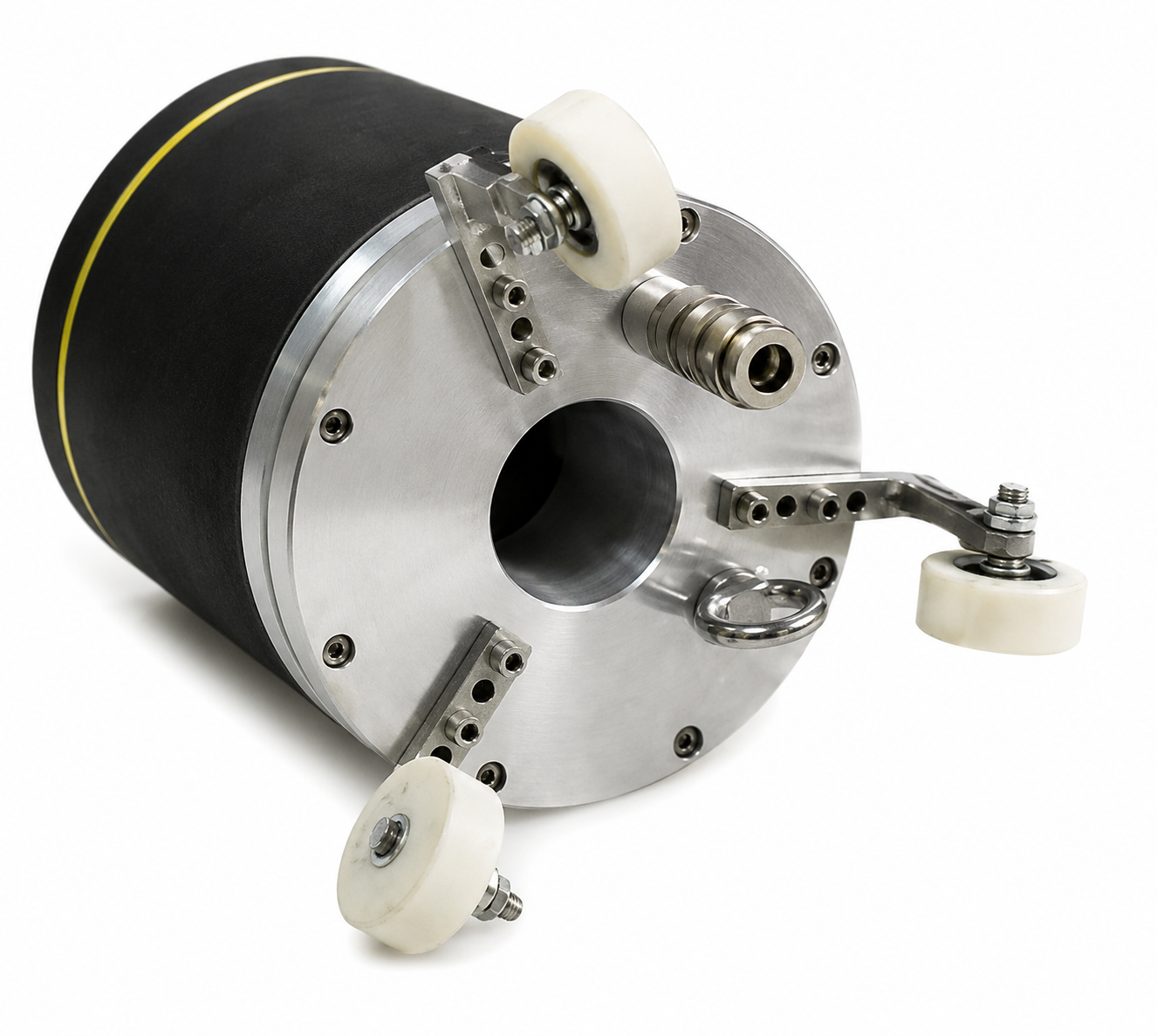

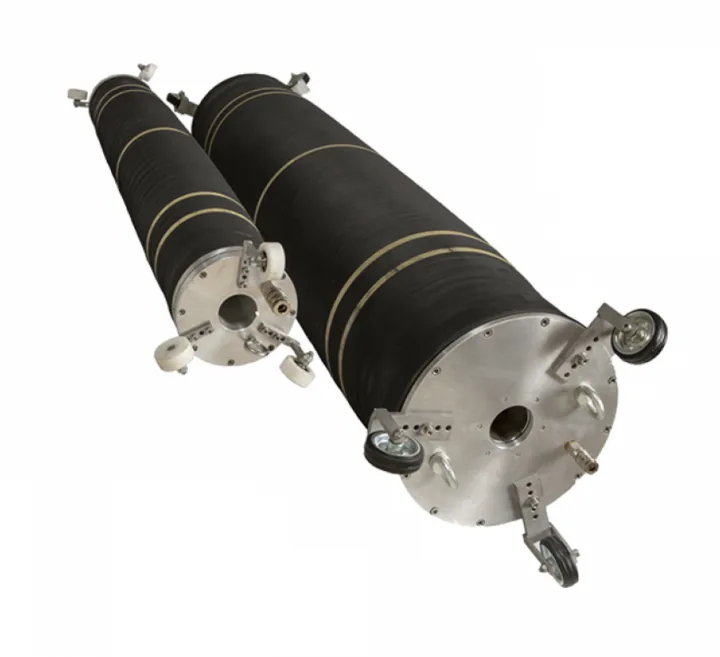

Dieser flexible Packer ist mit einem integrierten Bypass-System ausgestattet, das eine kontrollierte Durchleitung von Medien während der Sanierung ermöglicht. Dadurch können Prüf-, Spül- oder Injektionsprozesse parallel zur Abdichtung durchgeführt werden.

Zusätzliche Informationen

Gewicht	n. v.
Ausführung	BTB10015010, BTB10015015, BTB10015020, BTB10015025, BTB10015030, BTB10015040, BTB10015050, BTB15025010, BTB15025015, BTB15025020, BTB15025025, BTB15025030, BTB15025040, BTB15025050, BTB20030010, BTB20030015, BTB20030020, BTB20030030, BTB20030040, BTB20030050, BTB30040010, BTB30040015, BTB30040020, BTB30040030, BTB30040040, BTB30040050, BTB40060015, BTB40060020, BTB40060030, BTB40060040, BTB40060050, BTB60080015, BTB60080020, BTB60080030, BTB60080040, BTB60080050, BTB700100015, BTB700100020, BTB700100025, BTB700120020, BTB700120025, BTB1000150020, BTB1000150030
Durchmesser	100-1500 mm
Arbeitsdruck	1-2.5 bar
