MINI LATERAL PACKERS
Artikel Nr.: TB

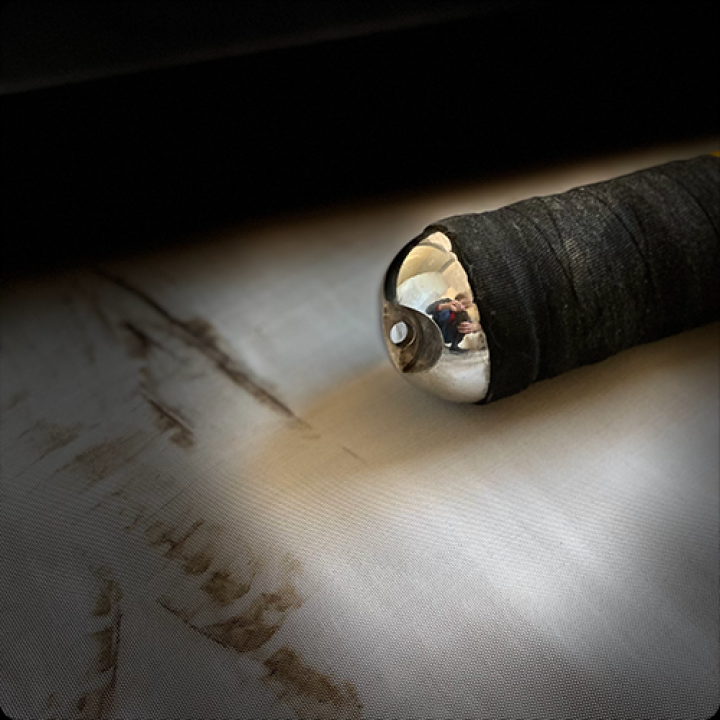

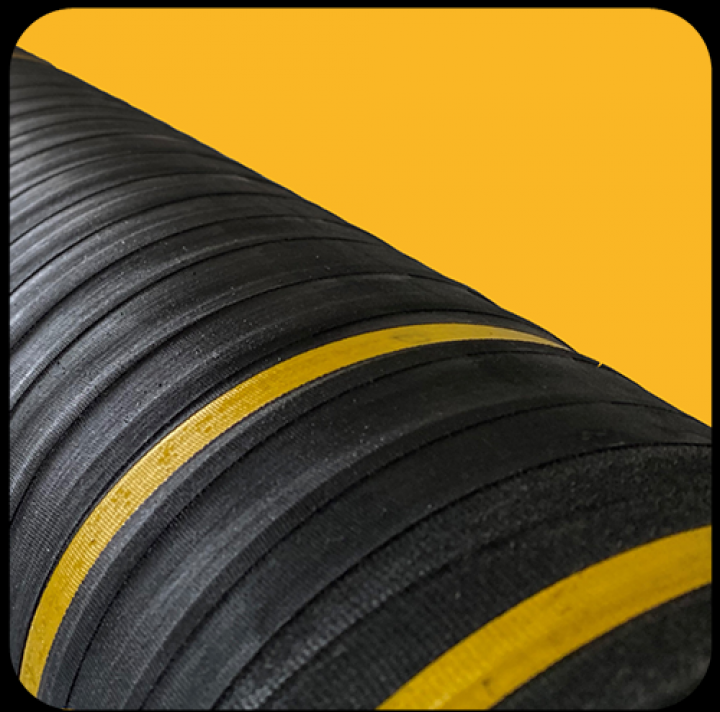

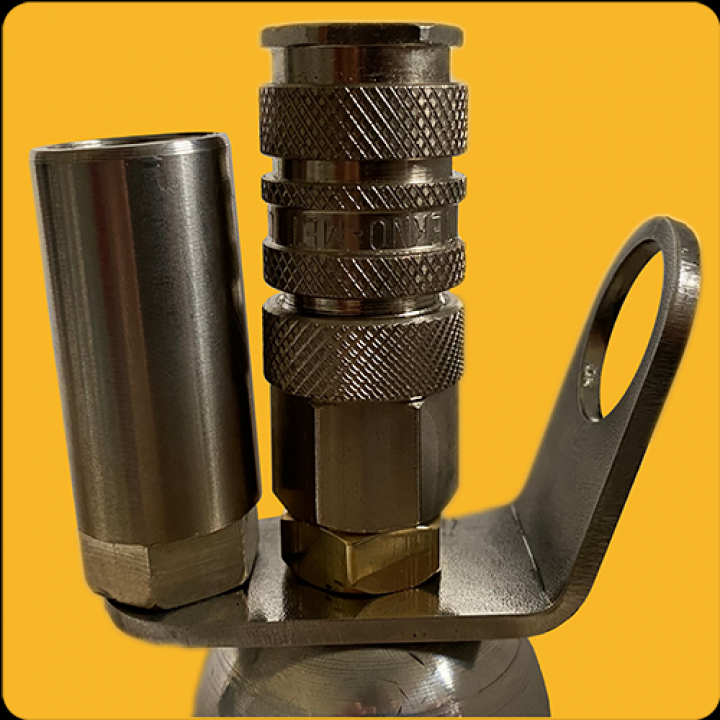

PIPE DOKTOR Mini Lateral Packers are products that allow point repairs on pipelines. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C.

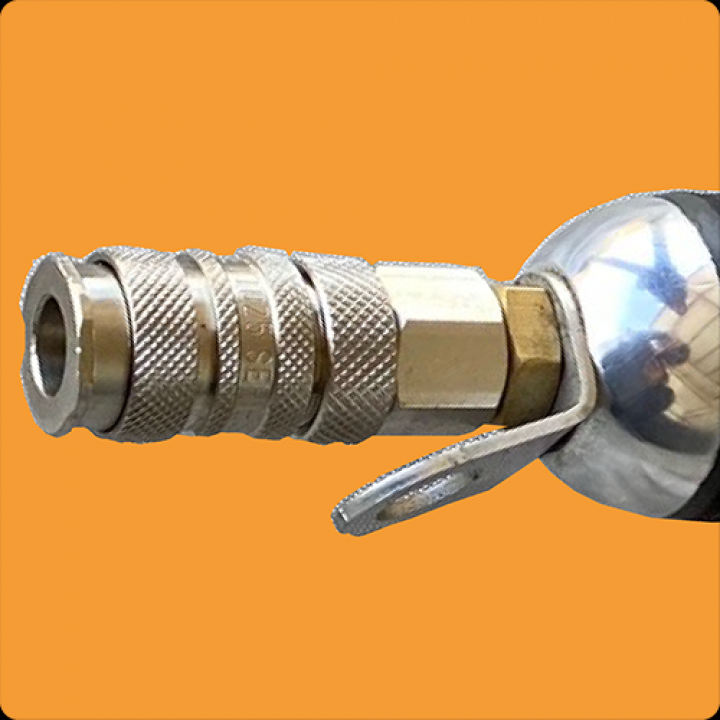

*Can be produced as a Push Rod compatible head.
*Can be produced as a Push Rod compatible head.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| TB255006 | 25 | 50 | 3.0 / 44 | 21 | 600 | 770 | 0.3 |
| TB255010 | 25 | 50 | 3.0 / 44 | 21 | 1000 | 1170 | 0.35 |
| TB255015 | 25 | 50 | 3.0 / 44 | 21 | 1500 | 1670 | 0.4 |
| TB255020 | 25 | 50 | 3.0 / 44 | 21 | 2000 | 2170 | 0.5 |
| TB255030 | 25 | 50 | 3.0 / 44 | 21 | 3000 | 3170 | 0.6 |
| TB255040 | 25 | 50 | 3.0 / 44 | 21 | 4000 | 4170 | 0.7 |
| TB255050 | 25 | 50 | 3.0 / 44 | 21 | 5000 | 5170 | 0.8 |
| TB306010 | 30 | 60 | 3.0 / 44 | 25 | 1000 | 1170 | 0.4 |
| TB306015 | 30 | 60 | 3.0 / 44 | 25 | 1500 | 1670 | 0.5 |
| TB306020 | 30 | 60 | 3.0 / 44 | 25 | 2000 | 2170 | 0.7 |
| TB306030 | 30 | 60 | 3.0 / 44 | 25 | 3000 | 3170 | 0.8 |
| TB306040 | 30 | 60 | 3.0 / 44 | 25 | 4000 | 4170 | 1.3 |
| TB306050 | 30 | 60 | 3.0 / 44 | 25 | 5000 | 5170 | 1.6 |
| TB507010 | 50 | 70 | 3.0 / 44 | 34 | 1000 | 1170 | 0.6 |
| TB507015 | 50 | 70 | 3.0 / 44 | 34 | 1500 | 1670 | 0.8 |
| TB507020 | 50 | 70 | 3.0 / 44 | 34 | 2000 | 2170 | 1.3 |
| TB507030 | 50 | 70 | 3.0 / 44 | 34 | 3000 | 3170 | 1.6 |
| TB507040 | 50 | 70 | 3.0 / 44 | 34 | 4000 | 4170 | 2.5 |
| TB507050 | 50 | 70 | 3.0 / 44 | 34 | 5000 | 5170 | 2.8 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (lbs) | |
| TB255006 | 1" | 2" | 3.0 / 44 | 0.8" | 23.6" | 30.3" | 0.6 |
| TB255010 | 1" | 2" | 3.0 / 44 | 0.8" | 39.3" | 46.0" | 0.7 |
| TB255015 | 1" | 2" | 3.0 / 44 | 0.8" | 59.0" | 65.7" | 0.8 |
| TB255020 | 1" | 2" | 3.0 / 44 | 0.8" | 78.8" | 85.5" | 1.1 |
| TB255030 | 1" | 2" | 3.0 / 44 | 0.8" | 118" | 124.8" | 1.3 |
| TB255040 | 1" | 2" | 3.0 / 44 | 0.8" | 157" | 164" | 1.5 |
| TB255050 | 1" | 2" | 3.0 / 44 | 0.8" | 197" | 203.5" | 1.7 |
| TB306010 | 1.1" | 2.4" | 3.0 / 44 | 1" | 39.3" | 46.0" | 0.8 |
| TB306015 | 1.1" | 2.4" | 3.0 / 44 | 1" | 59.0" | 65.7" | 1.1 |
| TB306020 | 1.1" | 2.4" | 3.0 / 44 | 1" | 78.8" | 85.5" | 1.5 |
| TB306030 | 1.1" | 2.4" | 3.0 / 44 | 1" | 118" | 124.8" | 1.7 |
| TB306040 | 1.1" | 2.4" | 3.0 / 44 | 1" | 157" | 164" | 2.8 |
| TB306050 | 1.1" | 2.4" | 3.0 / 44 | 1" | 197" | 203.5" | 3.5 |
| TB507010 | 2" | 2.8" | 3.0 / 44 | 1.3" | 39.3" | 46.0" | 1.3 |
| TB507015 | 2" | 2.8" | 3.0 / 44 | 1.3" | 59.0" | 65.7" | 1.7 |
| TB507020 | 2" | 2.8" | 3.0 / 44 | 1.3" | 78.8" | 85.5" | 2.8 |
| TB507030 | 2" | 2.8" | 3.0 / 44 | 1.3" | 118" | 124.8" | 3.5 |
| TB507040 | 2" | 2.8" | 3.0 / 44 | 1.3" | 157" | 164" | 5.5 |
| TB507050 | 2" | 2.8" | 3.0 / 44 | 1.3" | 197" | 203.5" | 6.1 |
Download
Technical Documents Klicken Sie oben, um den Katalog herunterzuladen
