LATERAL PACKERS
Artikel Nr.: TB
PIPE DOKTOR Lateral Packers are products that allow point repairs on pipelines. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C.

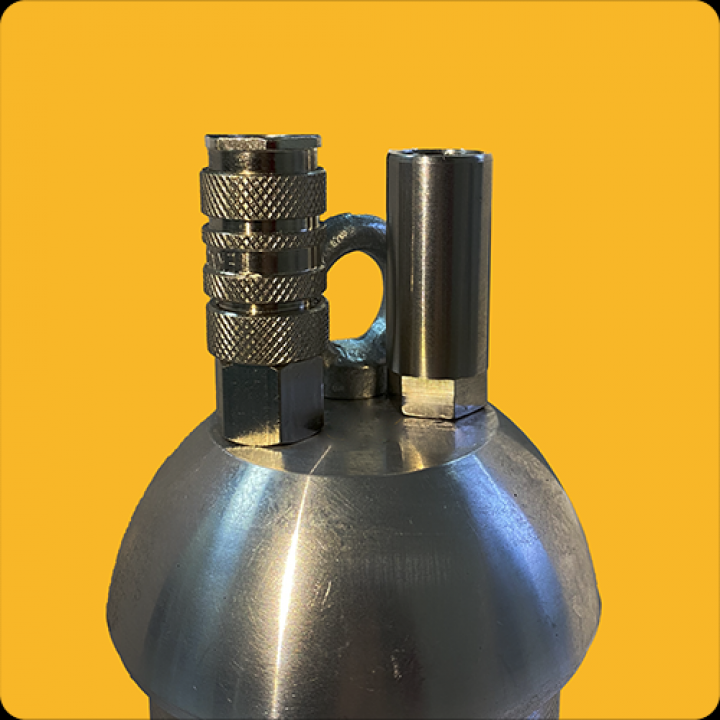

*Can be produced as a Push Rod compatible head.
*Can be produced as a Push Rod compatible head.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| TB7010006 | 70 | 100 | 3.0 / 44 | 39 | 600 | 870 | 0.6 |
| TB7010010 | 70 | 100 | 3.0 / 44 | 39 | 1000 | 1170 | 0.8 |
| TB7010015 | 70 | 100 | 3.0 / 44 | 39 | 1500 | 1670 | 1.1 |
| TB7010020 | 70 | 100 | 3.0 / 44 | 39 | 2000 | 2170 | 1.4 |
| TB7010030 | 70 | 100 | 3.0 / 44 | 39 | 3000 | 3170 | 2.0 |
| TB7010040 | 70 | 100 | 3.0 / 44 | 39 | 4000 | 4170 | 2.8 |
| TB7010050 | 70 | 100 | 3.0 / 44 | 39 | 5000 | 5170 | 3.4 |
| TB8012510 | 80 | 125 | 3.0 / 44 | 45 | 1000 | 1170 | 1.4 |
| TB8012515 | 80 | 125 | 3.0 / 44 | 45 | 1500 | 1670 | 2.0 |
| TB8012520 | 80 | 125 | 3.0 / 44 | 45 | 2000 | 2170 | 2.3 |
| TB8012530 | 80 | 125 | 3.0 / 44 | 45 | 3000 | 3170 | 4.2 |
| TB8012540 | 80 | 125 | 3.0 / 44 | 45 | 4000 | 4170 | 5.0 |
| TB8012550 | 80 | 125 | 3.0 / 44 | 45 | 5000 | 5170 | 5.7 |
| TB10015010 | 100 | 150 | 2.5 / 36 | 64 | 1000 | 1170 | 1.6 |
| TB10015015 | 100 | 150 | 2.5 / 36 | 64 | 1500 | 1670 | 2.2 |
| TB10015020 | 100 | 150 | 2.5 / 36 | 64 | 2000 | 2170 | 2.6 |
| TB10015030 | 100 | 150 | 2.5 / 36 | 64 | 3000 | 3170 | 4.7 |
| TB10015040 | 100 | 150 | 2.5 / 36 | 64 | 4000 | 4170 | 5.7 |
| TB10015050 | 100 | 150 | 2.5 / 36 | 64 | 5000 | 5170 | 6.5 |
| TB15020010 | 150 | 200 | 2.5 / 36 | 89 | 1000 | 1170 | 1.9 |
| TB15020015 | 150 | 200 | 2.5 / 36 | 89 | 1500 | 1670 | 2.4 |
| TB15020020 | 150 | 200 | 2.5 / 36 | 89 | 2000 | 2170 | 2.8 |
| TB15020030 | 150 | 200 | 2.5 / 36 | 89 | 3000 | 3170 | 3.8 |
| TB15020040 | 150 | 200 | 2.5 / 36 | 89 | 4000 | 4170 | 4.9 |
| TB15020050 | 150 | 200 | 2.5 / 36 | 89 | 5000 | 5170 | 5.3 |
| TB15025010 | 150 | 250 | 2.5 / 36 | 102 | 1000 | 1170 | 2.2 |
| TB15025015 | 150 | 250 | 2.5 / 36 | 102 | 1500 | 1670 | 2.7 |
| TB15025020 | 150 | 250 | 2.5 / 36 | 102 | 2000 | 2170 | 3.2 |
| TB15025030 | 150 | 250 | 2.5 / 36 | 102 | 3000 | 3170 | 4.2 |
| TB15025040 | 150 | 250 | 2.5 / 36 | 102 | 4000 | 4170 | 5.2 |
| TB15025050 | 150 | 250 | 2.5 / 36 | 102 | 5000 | 5170 | 6.2 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (kg) | |
| TB7010006 | 2.8" | 4" | 3.0 / 44 | 1.5" | 23.6" | 34.0" | 1.3 |
| TB7010010 | 2.8" | 4" | 3.0 / 44 | 1.5" | 39.3" | 46.0" | 1.7 |
| TB7010015 | 2.8" | 4" | 3.0 / 44 | 1.5" | 59.0" | 65.7" | 2.4 |
| TB7010020 | 2.8" | 4" | 3.0 / 44 | 1.5" | 78.8" | 85.5" | 3.0 |
| TB7010030 | 2.8" | 4" | 3.0 / 44 | 1.5" | 118" | 124.8" | 4.4 |
| TB7010040 | 2.8" | 4" | 3.0 / 44 | 1.5" | 157" | 164" | 6.1 |
| TB7010050 | 2.8" | 4" | 3.0 / 44 | 1.5" | 197" | 203.5" | 7.5 |
| TB8012510 | 3" | 5" | 3.0 / 44 | 1.7" | 39.3" | 46.0" | 3.0 |
| TB8012515 | 3" | 5" | 3.0 / 44 | 1.7" | 59.0" | 65.7" | 4.4 |
| TB8012520 | 3" | 5" | 3.0 / 44 | 1.7" | 78.8" | 85.5" | 5.0 |
| TB8012530 | 3" | 5" | 3.0 / 44 | 1.7" | 118" | 124.8" | 9.2 |
| TB8012540 | 3" | 5" | 3.0 / 44 | 1.7" | 157" | 164" | 11.0 |
| TB8012550 | 3" | 5" | 3.0 / 44 | 1.7" | 197" | 203.5" | 12.5 |
| TB10015010 | 4" | 6" | 2.5 / 36 | 2.5" | 39.3" | 46.0" | 3.5 |
| TB10015015 | 4" | 6" | 2.5 / 36 | 2.5" | 59.0" | 65.7" | 4.8 |
| TB10015020 | 4" | 6" | 2.5 / 36 | 2.5" | 78.8" | 85.5" | 5.7 |
| TB10015030 | 4" | 6" | 2.5 / 36 | 2.5" | 118" | 124.8" | 10.3 |
| TB10015040 | 4" | 6" | 2.5 / 36 | 2.5" | 157" | 164" | 12.5 |
| TB10015050 | 4" | 6" | 2.5 / 36 | 2.5" | 197" | 203.5" | 14.3 |
| TB15020010 | 6" | 8" | 2.5 / 36 | 3.5" | 39.3" | 46.0" | 4.1 |
| TB15020015 | 6" | 8" | 2.5 / 36 | 3.5" | 59.0" | 65.7" | 5.3 |
| TB15020020 | 6" | 8" | 2.5 / 36 | 3.5" | 78.8" | 85.5" | 6.1 |
| TB15020030 | 6" | 8" | 2.5 / 36 | 3.5" | 118" | 124.8" | 8.3 |
| TB15020040 | 6" | 8" | 2.5 / 36 | 3.5" | 157" | 164" | 10.8 |
| TB15020050 | 6" | 8" | 2.5 / 36 | 3.5" | 197" | 203.5" | 11.6 |
| TB15025010 | 6" | 10" | 2.5 / 36 | 4.2" | 39.3" | 46.0" | 4.8 |
| TB15025015 | 6" | 10" | 2.5 / 36 | 4.2" | 59.0" | 65.7" | 6.0 |
| TB15025020 | 6" | 10" | 2.5 / 36 | 4.2" | 78.8" | 85.5" | 7.0 |
| TB15025030 | 6" | 10" | 2.5 / 36 | 4.2" | 118" | 124.8" | 9.2 |
| TB15025040 | 6" | 10" | 2.5 / 36 | 4.2" | 157" | 164" | 11.4 |
| TB15025050 | 6" | 10" | 2.5 / 36 | 4.2" | 197" | 203.5" | 13.6 |
