BOGENSANIERUNGSPACKER
Artikel Nr.: DP

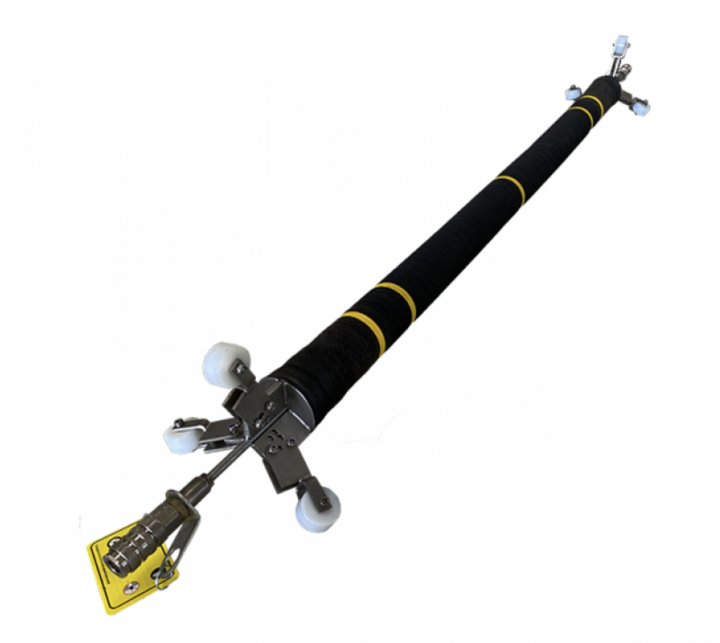

PIPE DOKTOR Bendy Packers are products that allow point repair of bends in pipelines. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C. Its biggest advantage is that it allows repairs to be made in these areas by turning from 30º, 45º and 90º bends.
*Can be produced as a Push Rod compatible head.
*Can be produced as a Push Rod compatible head.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| DP10012 | 100 | 2.0 / 29 | 43 | 1200 | 1550 | ||
| DP10015 | 100 | 2.0 / 29 | 43 | 1500 | 1850 | ||
| DP10020 | 100 | 2.0 / 29 | 43 | 2000 | 2350 | ||
| DP10030 | 100 | 2.0 / 29 | 43 | 3000 | 3350 | ||
| DP10040 | 100 | 2.0 / 29 | 43 | 4000 | 4350 | ||
| DP10050 | 100 | 2.0 / 29 | 43 | 5000 | 5350 | ||
| DP10012512 | 100 | 125 | 2.0 / 29 | 64 | 1200 | 1550 | |
| DP10012515 | 100 | 125 | 2.0 / 29 | 64 | 1500 | 1850 | |
| DP10012520 | 100 | 125 | 2.0 / 29 | 64 | 2000 | 2350 | |
| DP10012530 | 100 | 125 | 2.0 / 29 | 64 | 3000 | 3350 | |
| DP10012540 | 100 | 125 | 2.0 / 29 | 64 | 4000 | 4350 | |
| DP10012550 | 100 | 125 | 2.0 / 29 | 64 | 5000 | 5350 | |
| DP15012 | 150 | 2.0 / 29 | 71 | 1200 | 1550 | ||
| DP15015 | 150 | 2.0 / 29 | 71 | 1500 | 1850 | ||
| DP15020 | 150 | 2.0 / 29 | 71 | 2000 | 2350 | ||
| DP15030 | 150 | 2.0 / 29 | 71 | 3000 | 3350 | ||
| DP15040 | 150 | 2.0 / 29 | 71 | 4000 | 4350 | ||
| DP15050 | 150 | 2.0 / 29 | 71 | 5000 | 5350 | ||
| DP15017012 | 150 | 170 | 2.0 / 29 | 112 | 1200 | 1550 | |
| DP15017015 | 150 | 170 | 2.0 / 29 | 112 | 1500 | 1850 | |
| DP15017020 | 150 | 170 | 2.0 / 29 | 112 | 2000 | 2350 | |
| DP15017030 | 150 | 170 | 2.0 / 29 | 112 | 3000 | 3350 | |
| DP15017040 | 150 | 170 | 2.0 / 29 | 112 | 4000 | 4350 | |
| DP15017050 | 150 | 170 | 2.0 / 29 | 112 | 5000 | 5350 | |
| DP20022515 | 200 | 225 | 2.0 / 29 | 150 | 1500 | 1850 | |
| DP20022520 | 200 | 225 | 2.0 / 29 | 150 | 2000 | 2350 | |
| DP20022530 | 200 | 225 | 2.0 / 29 | 150 | 3000 | 3350 | |
| DP20022540 | 200 | 225 | 2.0 / 29 | 150 | 4000 | 4350 | |
| DP20022550 | 200 | 225 | 2.0 / 29 | 150 | 5000 | 5350 | |
| DP30015 | 300 | 1.5 / 22 | 214 | 1500 | 1850 | ||
| DP30020 | 300 | 1.5 / 22 | 214 | 2000 | 2350 | ||
| DP30030 | 300 | 1.5 / 22 | 214 | 3000 | 3350 | ||
| DP30040 | 300 | 1.5 / 22 | 214 | 4000 | 4350 | ||
| DP30050 | 300 | 1.5 / 22 | 214 | 5000 | 5350 | ||
| DP40015 | 400 | 1.5 / 22 | 290 | 1500 | 1850 | ||
| DP40020 | 400 | 1.5 / 22 | 290 | 2000 | 2350 | ||
| DP40030 | 400 | 1.5 / 22 | 290 | 3000 | 3350 | ||
| DP40040 | 400 | 1.5 / 22 | 290 | 4000 | 4350 | ||
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Approx. Weight | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (lbs) | |
| DP10012 | 4" | 2.0 / 29 | 1.7" | 47.2" | 61.0" | ||
| DP10015 | 4" | 2.0 / 29 | 1.7" | 59.0" | 72.8" | ||
| DP10020 | 4" | 2.0 / 29 | 1.7" | 78.8" | 92.5" | ||
| DP10030 | 4" | 2.0 / 29 | 1.7" | 118.1" | 131.8" | ||
| DP10040 | 4" | 2.0 / 29 | 1.7" | 157.5" | 171.2" | ||
| DP10050 | 4" | 2.0 / 29 | 1.7" | 197.0" | 210.6" | ||
| DP10012512 | 4" | 5" | 2.0 / 29 | 2.5" | 47.2" | 61.0" | |
| DP10012515 | 4" | 5" | 2.0 / 29 | 2.5" | 59.0" | 72.8" | |
| DP10012520 | 4" | 5" | 2.0 / 29 | 2.5" | 78.8" | 92.5" | |
| DP10012530 | 4" | 5" | 2.0 / 29 | 2.5" | 118.1" | 131.8" | |
| DP10012540 | 4" | 5" | 2.0 / 29 | 2.5" | 157.5" | 171.2" | |
| DP10012550 | 4" | 5" | 2.0 / 29 | 2.5" | 197.0" | 210.6" | |
| DP15012 | 6" | 2.0 / 29 | 2.8" | 47.2" | 61.0" | ||
| DP15015 | 6" | 2.0 / 29 | 2.8" | 59.0" | 72.8" | ||
| DP15020 | 6" | 2.0 / 29 | 2.8" | 78.8" | 92.5" | ||
| DP15030 | 6" | 2.0 / 29 | 2.8" | 118.1" | 131.8" | ||
| DP15040 | 6" | 2.0 / 29 | 2.8" | 157.5" | 171.2" | ||
| DP15050 | 6" | 2.0 / 29 | 2.8" | 197.0" | 210.6" | ||
| DP15017012 | 6" | 6.7" | 2.0 / 29 | 4.4" | 47.2" | 61.0" | |
| DP15017015 | 6" | 6.7" | 2.0 / 29 | 4.4" | 59.0" | 72.8" | |
| DP15017020 | 6" | 6.7" | 2.0 / 29 | 4.4" | 78.8" | 92.5" | |
| DP15017030 | 6" | 6.7" | 2.0 / 29 | 4.4" | 118.1" | 131.8" | |
| DP15017040 | 6" | 6.7" | 2.0 / 29 | 4.4" | 157.5" | 171.2" | |
| DP15017050 | 6" | 6.7" | 2.0 / 29 | 4.4" | 197.0" | 210.6" | |
| DP20022515 | 8" | 8.8" | 2.0 / 29 | 6.0" | 59.0" | 72.8" | |
| DP20022520 | 8" | 8.8" | 2.0 / 29 | 6.0" | 78.8" | 92.5" | |
| DP20022530 | 8" | 8.8" | 2.0 / 29 | 6.0" | 118.1" | 131.8" | |
| DP20022540 | 8" | 8.8" | 2.0 / 29 | 6.0" | 157.5" | 171.2" | |
| DP20022550 | 8" | 8.8" | 2.0 / 29 | 6.0" | 197.0" | 210.6" | |
| DP30015 | 12" | 1.5 / 22 | 8.4" | 59.0" | 72.8" | ||
| DP30020 | 12" | 1.5 / 22 | 8.4" | 78.8" | 92.5" | ||
| DP30030 | 12" | 1.5 / 22 | 8.4" | 118.1" | 131.8" | ||
| DP30040 | 12" | 1.5 / 22 | 8.4" | 157.5" | 171.2" | ||
| DP30050 | 12" | 1.5 / 22 | 8.4" | 197.0" | 210.6" | ||
| DP40015 | 16" | 1.5 / 22 | 11.4" | 59.0" | 72.8" | ||
| DP40020 | 16" | 1.5 / 22 | 11.4" | 78.8" | 92.5" | ||
| DP40030 | 16" | 1.5 / 22 | 11.4" | 118.1" | 131.8" | ||
| DP40040 | 16" | 1.5 / 22 | 11.4" | 157.5" | 171.2" | ||
