LATERAL PACKER MIT RÄDERN
Artikel Nr.: TB

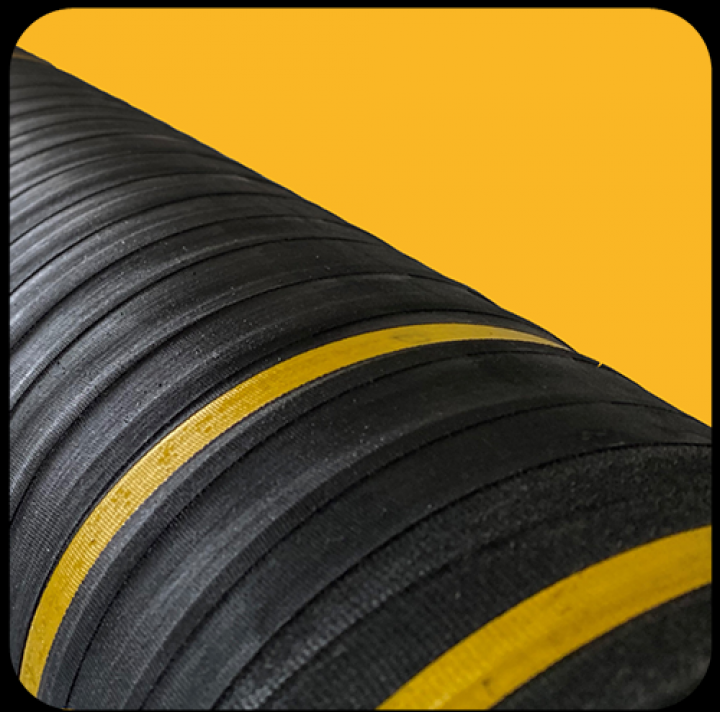

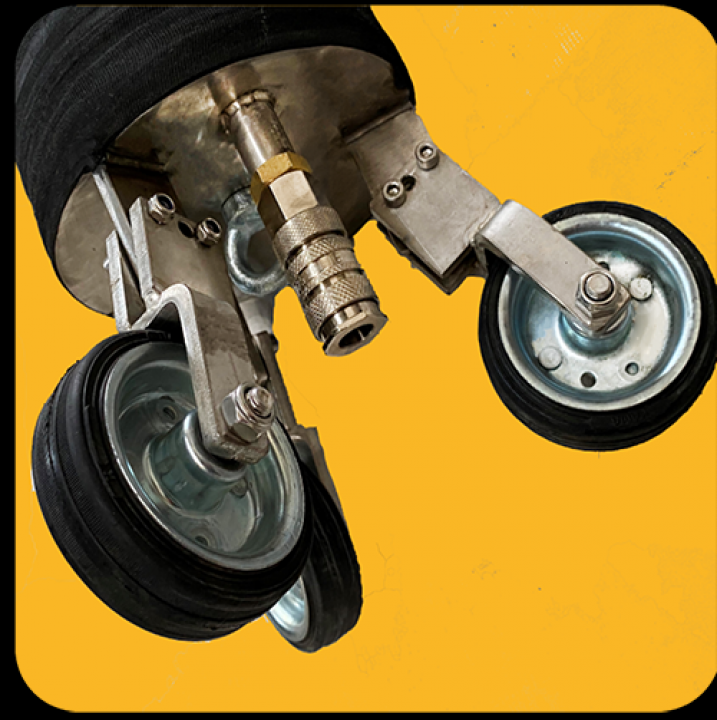

PIPE DOKTOR Lateral Packers with Wheels are products that allow point repairs on pipelines. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C. The biggest advantage is that thanks to their wheeled structure, they allow easier movement in pipe than standard lateral packers.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | ||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | |
| TB15025010W | 150 | 250 | 2.5 / 36 | 102 | 1000 | 1170 |
| TB15025015W | 150 | 250 | 2.5 / 36 | 102 | 1500 | 1670 |
| TB15025020W | 150 | 250 | 2.5 / 36 | 102 | 2000 | 2170 |
| TB15025030W | 150 | 250 | 2.5 / 36 | 102 | 3000 | 3170 |
| TB15025040W | 150 | 250 | 2.5 / 36 | 102 | 4000 | 4170 |
| TB15025050W | 150 | 250 | 2.5 / 36 | 102 | 5000 | 5170 |
| TB20030010W | 200 | 300 | 2.0 / 29 | 150 | 1000 | 1170 |
| TB20030015W | 200 | 300 | 2.0 / 29 | 150 | 1500 | 1670 |
| TB20030020W | 200 | 300 | 2.0 / 29 | 150 | 2000 | 2170 |
| TB20030030W | 200 | 300 | 2.0 / 29 | 150 | 3000 | 3170 |
| TB20030040W | 200 | 300 | 2.0 / 29 | 150 | 4000 | 4170 |
| TB20030050W | 200 | 300 | 2.0 / 29 | 150 | 5000 | 5170 |
| TB30040010W | 300 | 400 | 1.0 / 15 | 220 | 1000 | 1170 |
| TB30040015W | 300 | 400 | 1.0 / 15 | 220 | 1500 | 1670 |
| TB30040020W | 300 | 400 | 1.0 / 15 | 220 | 2000 | 2170 |
| TB30040030W | 300 | 400 | 1.0 / 15 | 220 | 3000 | 3170 |
| TB30040040W | 300 | 400 | 1.0 / 15 | 220 | 4000 | 4170 |
| TB30040050W | 300 | 400 | 1.0 / 15 | 220 | 5000 | 5170 |
| TB40050015W | 400 | 500 | 1.0 / 15 | 293 | 1500 | 1670 |
| TB40050020W | 400 | 500 | 1.0 / 15 | 293 | 2000 | 2170 |
| TB40050030W | 400 | 500 | 1.0 / 15 | 293 | 3000 | 3170 |
| TB40050040W | 400 | 500 | 1.0 / 15 | 293 | 4000 | 4170 |
| TB40050050W | 400 | 500 | 1.0 / 15 | 293 | 5000 | 5170 |
| TB50060015W | 500 | 600 | 1.0 / 15 | 340 | 1500 | 1670 |
| TB50060020W | 500 | 600 | 1.0 / 15 | 340 | 2000 | 2170 |
| TB50060030W | 500 | 600 | 1.0 / 15 | 340 | 3000 | 3170 |
| TB50060040W | 500 | 600 | 1.0 / 15 | 340 | 4000 | 4170 |
| TB50060050W | 500 | 600 | 1.0 / 15 | 340 | 5000 | 5170 |
| TB60080015W | 600 | 800 | 1.0 / 15 | 375 | 1500 | 1670 |
| TB60080020W | 600 | 800 | 1.0 / 15 | 375 | 2000 | 2170 |
| TB60080030W | 600 | 800 | 1.0 / 15 | 375 | 3000 | 3170 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | |||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | ||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | |
| TB15025010W | 6" | 10" | 2.5 / 36 | 4.2" | 39.3" | 46.0" |
| TB15025015W | 6" | 10" | 2.5 / 36 | 4.2" | 59.0" | 65.8" |
| TB15025020W | 6" | 10" | 2.5 / 36 | 4.2" | 78.8" | 85.5" |
| TB15025030W | 6" | 10" | 2.5 / 36 | 4.2" | 118.1" | 124.8" |
| TB15025040W | 6" | 10" | 2.5 / 36 | 4.2" | 157.5" | 164.1" |
| TB15025050W | 6" | 10" | 2.5 / 36 | 4.2" | 197.0" | 203.5" |
| TB20030010W | 8" | 12" | 2.0 / 29 | 6" | 39.3" | 46.0" |
| TB20030015W | 8" | 12" | 2.0 / 29 | 150 / 6" | 59.0" | 65.8" |
| TB20030020W | 8" | 12" | 2.0 / 29 | 150 / 6" | 78.8" | 85.5" |
| TB20030030W | 8" | 12" | 2.0 / 29 | 150 / 6" | 118.1" | 124.8" |
| TB20030040W | 8" | 12" | 2.0 / 29 | 150 / 6" | 157.5" | 164.1" |
| TB20030050W | 8" | 12" | 2.0 / 29 | 150 / 6" | 197.0" | 203.5" |
| TB30040010W | 12" | 16" | 1.0 / 15 | 8.6" | 39.3" | 46.0" |
| TB30040015W | 12" | 16" | 1.0 / 15 | 8.6" | 59.0" | 65.8" |
| TB30040020W | 12" | 16" | 1.0 / 15 | 8.6" | 78.8" | 85.5" |
| TB30040030W | 12" | 16" | 1.0 / 15 | 8.6" | 118.1" | 124.8" |
| TB30040040W | 12" | 16" | 1.0 / 15 | 8.6" | 157.5" | 164.1" |
| TB30040050W | 12" | 16" | 1.0 / 15 | 8.6" | 197.0" | 203.5" |
| TB40050015W | 16" | 20" | 1.0 / 15 | 11.5" | 59.0" | 65.8" |
| TB40050020W | 16" | 20" | 1.0 / 15 | 11.5" | 78.8" | 85.5" |
| TB40050030W | 16" | 20" | 1.0 / 15 | 11.5" | 118.1" | 124.8" |
| TB40050040W | 16" | 20" | 1.0 / 15 | 11.5" | 157.5" | 164.1" |
| TB40050050W | 16" | 20" | 1.0 / 15 | 11.5" | 197.0" | 203.5" |
| TB50060015W | 20" | 24" | 1.0 / 15 | 13.4" | 59.0" | 65.8" |
| TB50060020W | 20" | 24" | 1.0 / 15 | 13.4" | 78.8" | 85.5" |
| TB50060030W | 20" | 24" | 1.0 / 15 | 13.4" | 118.1" | 124.8" |
| TB50060040W | 20" | 24" | 1.0 / 15 | 13.4" | 157.5" | 164.1" |
| TB50060050W | 20" | 24" | 1.0 / 15 | 13.4" | 197.0" | 203.5" |
| TB60080015W | 24" | 32" | 1.0 / 15 | 15" | 59.0" | 65.8" |
| TB60080020W | 24" | 32" | 1.0 / 15 | 15" | 78.8" | 85.5" |
| TB60080030W | 24" | 32" | 1.0 / 15 | 15" | 118.1" | 124.8" |
