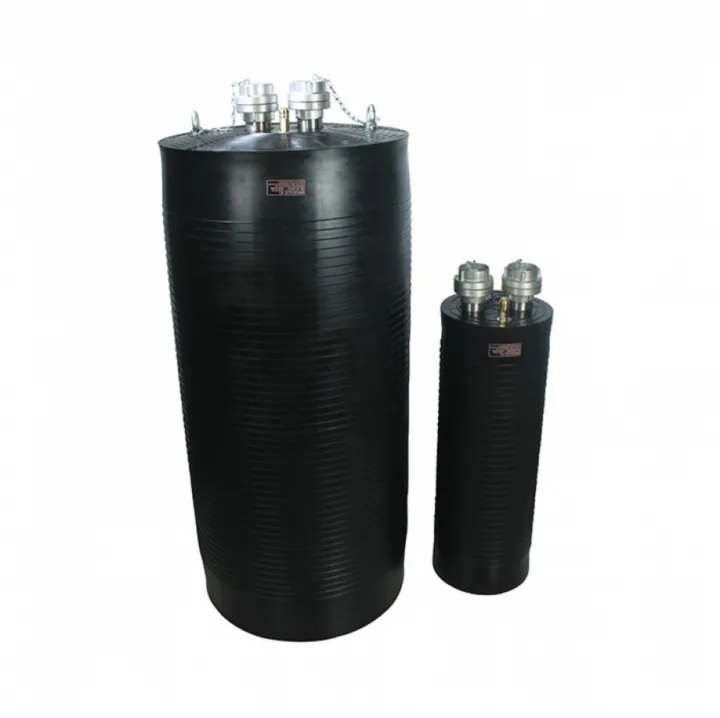

Name: PRÜFBLASEN mit DOPPELT BYPASS
SKU: 30199

PRÜFBLASEN mit DOPPELT BYPASS

ARTKL.NO:KTB

Bitte anmelden, um Preise zu sehen.

Maßtabelle (metrisch)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions		Back Pressure	By-Pass Size	Approx. Weight
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Total Lenght	Back Pressure	By-Pass Size	Approx. Weight
	(mm)	(mm)	(bar) / (psi)	(mm)	(mm)	(mm)	(mm)	(kg)
	KTB3570D	35	70	3.0 / 44	33	175	0.5 / 7.3	2x3/10"	1.4
KTB50100D	50	100	1.5 / 22	47	350	0.5 / 7.3	2x3/10"	0.5
KTB50100/2,5D	50	100	2.5 / 36	47	350	1.0 / 15	2x3/10"	0.6
KTB70150D	70	150	1.5 / 22	68	400	0.5 / 7.3	2x1/4"	1.3
KTB70150/2,5D	70	150	2.5 / 36	68	400	1.0 / 15	2x1/4"	1.5
KTB100200D	100	200	1.5 / 22	91	600	0.5 / 7.3	2x1/2"	2.6
KTB100200/2,5D	100	200	2.5 / 36	91	600	1.0 / 15	2x1/2"	2.8
KTB150300D	150	300	1.5 / 22	140	600	0.5 / 7.3	2x1"	4.8
KTB150300/2,5D	150	300	2.5 / 36	140	600	1.0 / 15	2x1"	5.1
KTB200400D	200	400	1.5 / 22	187	700	0.5 / 7.3	2x1"	8.5
KTB200400/2,5D	200	400	2.5 / 36	187	700	1.0 / 15	2x1"	8.9
KTB200500D	200	400	1.5 / 22	187	850	0.5 / 7.3	2x1"	9.5
KTB200500/2,5D	200	400	2.5 / 36	187	850	1.0 / 15	2x1"	9.7
KTB300600D	300	600	1.5 / 22	286	900	0.5 / 7.3	2x2"	13.4
KTB300600/2,5D	300	600	2.5 / 36	286	900	1.0 / 15	2x2"	13.8
KTB375750D	375	750	1.5 / 22	361	1050	0.5 / 7.3	2x2"	19.0
KTB375750/2,5D	375	750	2.5 / 36	361	1050	1.0 / 15	2x2"	19.5
KTB400800D	400	800	1.5 / 22	365	1050	0.5 / 7.3	2x2"	19.0
KTB400800/2,5D	400	800	2.5 / 36	365	1050	1.0 / 15	2x2"	19.5
KTB5001000D	500	1000	1.5 / 22	486	1150	0.5 / 7.3	2x2"	31.0
KTB5001000/2,5D	500	1000	2.5 / 36	486	1150	1.0 / 15	2x2"	31.5
KTB5001200D	500	1000	1.5 / 22	486	1350	0.5 / 7.3	2x2"	35.0
KTB6001200D	600	1200	2.5 / 36	586	1350	0.3 / 4.4	2x2"	43.0
KTB6001200/2,5D	600	1200	2.5 / 36	586	1350	0.8 /1.6	2x2"	45.0
KTB6001600D	600	1200	1.0 / 15	586	2100	0.3 / 4.4	2x2"	66.0
KTB6001600/1,5D	600	1200	1.5 / 22	586	2100	0.4/ 5.8	2x2"	78.0
KTB8001600D	800	1600	1.0 / 15	782	2050	0.5 / 7.3	2x2"	90.0
KTB8001800D	800	1600	1.0 / 15	782	2300	0.4/ 5.8	2x2"	100.0
KTB8002000D	800	1800	1.0 / 15	782	2800	0.4/ 5.8	2x2"	115.0
KTB8002200D	800	2000	1.0 / 15	782	3300	0.3 / 4.4	2x2"	126.0
KTB12002400D	1200	2200	1.0 / 15	1172	3100	0.5 / 7.3	2x2"	206.0
KTB12002600D	1200	2600	1.0 / 15	1172	3100	0.4/ 5.8	2x2"	220.0
KTB12002800D	1200	2800	1.0 / 15	1172	4100	0.3 / 4.4	2x2"	240.0

Maßtabelle (Zoll / imperial)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions		Back Pressure	By-Pass Size	Approx. Weight
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Total Lenght	Back Pressure	By-Pass Size	Approx. Weight
	(inch)	(inch)	(bar) / (psi)	(inch)	(inch)	(inch)	(inch)	(Ibs)
	KTB3570D	35	70	3.0 / 44	1.3"	6.9"	0.5 / 7.3	2x3/10"	3.0
KTB50100D	50	100	1.5 / 22	1.9"	13.8"	0.5 / 7.3	2x3/10"	1.1
KTB50100/2,5D	50	100	2.5 / 36	1.9"	13.8"	1.0 / 15	2x3/10"	1.3
KTB70150D	70	150	1.5 / 22	2.7"	15.7"	0.5 / 7.3	2x1/4"	2.8
KTB70150/2,5D	70	150	2.5 / 36	2.7"	15.7"	1.0 / 15	2x1/4"	3.3
KTB100200D	100	200	1.5 / 22	3.6"	23.6"	0.5 / 7.3	2x1/2"	5.7
KTB100200/2,5D	100	200	2.5 / 36	3.6"	23.6"	1.0 / 15	2x1/2"	6.1
KTB150300D	150	300	1.5 / 22	5.5"	23.6"	0.5 / 7.3	2x1"	10.5
KTB150300/2,5D	150	300	2.5 / 36	5.5"	23.6"	1.0 / 15	2x1"	11.2
KTB200400D	200	400	1.5 / 22	7.4"	27.6"	0.5 / 7.3	2x1"	18.7
KTB200400/2,5D	200	400	2.5 / 36	7.4"	27.6"	1.0 / 15	2x1"	19.5
KTB200500D	200	400	1.5 / 22	7.4"	33.5"	0.5 / 7.3	2x1"	20.9
KTB200500/2,5D	200	400	2.5 / 36	7.4"	33.5"	1.0 / 15	2x1"	21.3
KTB300600D	300	600	1.5 / 22	11.3"	35.4"	0.5 / 7.3	2x2"	29.4
KTB300600/2,5D	300	600	2.5 / 36	11.3"	35.4"	1.0 / 15	2x2"	30.3
KTB375750D	375	750	1.5 / 22	14.2"	41.3"	0.5 / 7.3	2x2"	41.8
KTB375750/2,5D	375	750	2.5 / 36	14.2"	41.3"	1.0 / 15	2x2"	42.9
KTB400800D	400	800	1.5 / 22	14.4"	41.3"	0.5 / 7.3	2x2"	41.8
KTB400800/2,5D	400	800	2.5 / 36	14.4"	41.3"	1.0 / 15	2x2"	42.9
KTB5001000D	500	1000	1.5 / 22	19"	47.2"	0.5 / 7.3	2x2"	68.2
KTB5001000/2,5D	500	1000	2.5 / 36	19"	47.2"	1.0 / 15	2x2"	69.3
KTB5001200D	500	1000	1.5 / 22	19"	59.1"	0.5 / 7.3	2x2"	77.0
KTB6001200D	600	1200	2.5 / 36	23.1"	53.1"	0.3 / 4.4	2x2"	94.6
KTB6001200/2,5D	600	1200	2.5 / 36	23.1"	53.1"	0.8 /1.6	2x2"	99.0
KTB6001600D	600	1200	1.0 / 15	23.1"	82.7"	0.3 / 4.4	2x2"	145.2
KTB6001600/1,5D	600	1200	1.5 / 22	23.1"	82.7"	0.4/ 5.8	2x2"	171.6
KTB8001600D	800	1600	1.0 / 15	30.8"	74.8"	0.5 / 7.3	2x2"	198.0
KTB8001800D	800	1600	1.0 / 15	30.8"	92.5"	0.4/ 5.8	2x2"	220.0
KTB8002000D	800	1800	1.0 / 15	30.8"	112.2"	0.4/ 5.8	2x2"	253.0
KTB8002200D	800	2000	1.0 / 15	30.8"	131.9"	0.3 / 4.4	2x2"	277.2
KTB12002400D	1200	2200	1.0 / 15	46"	126"	0.5 / 7.3	2x2"	453.2
KTB12002600D	1200	2600	1.0 / 15	46"	126"	0.4/ 5.8	2x2"	484.0
KTB12002800D	1200	2800	1.0 / 15	46"	165.4"	0.3 / 4.4	2x2"	528.0

Beschreibung

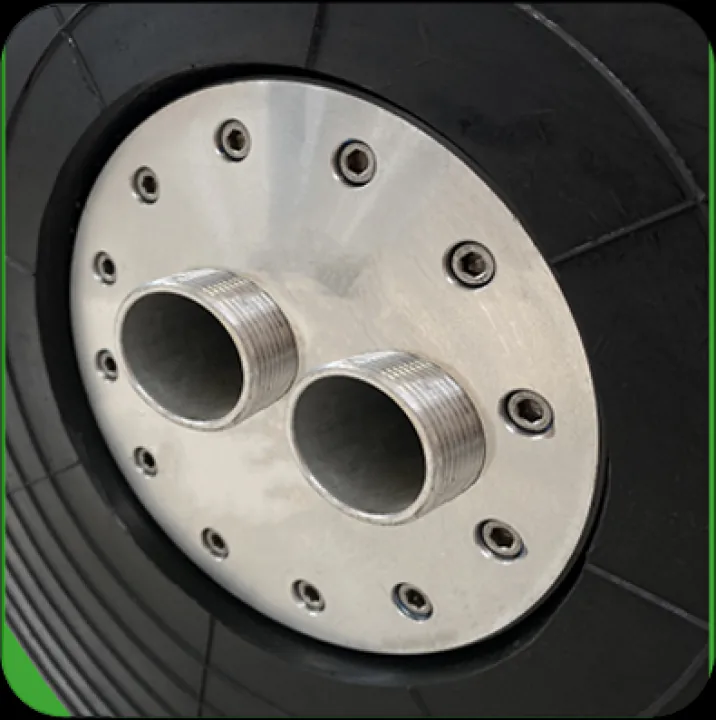

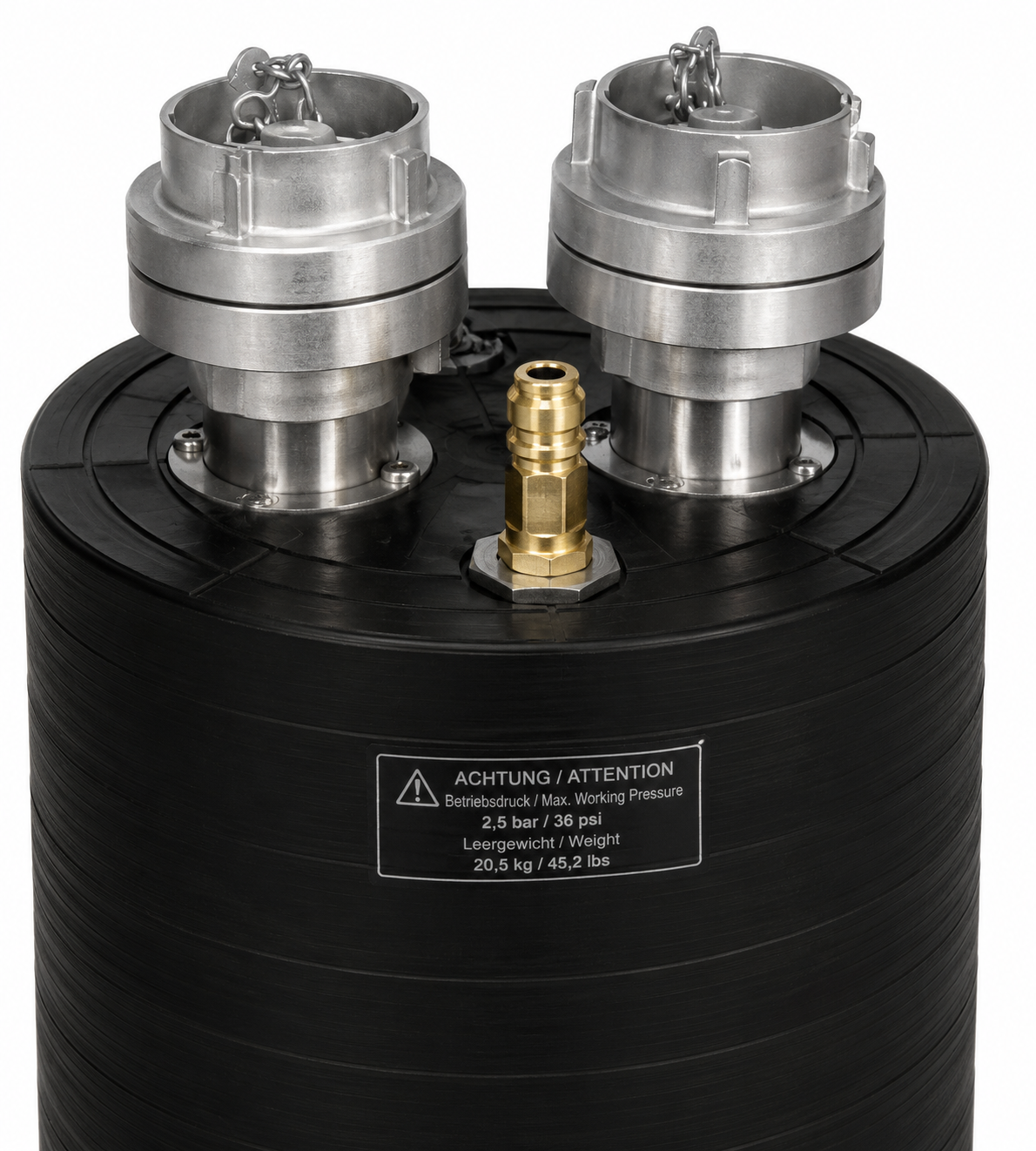

Diese Prüfblase ist mit einem doppelten Bypass-System ausgestattet, das eine kontrollierte Zu- und Ableitung von Medien während der Prüfung ermöglicht. Dadurch können Druckaufbau, Befüllung und Entleerung getrennt gesteuert werden. Sie eignet sich besonders für komplexe Prüfabläufe, bei denen mehrere Arbeitsprozesse gleichzeitig durchgeführt werden müssen.

Zusätzliche Informationen

Gewicht	n. v.
Ausführung	KTB3570D, KTB50100D, KTB50100/2,5D, KTB70150D, KTB70150/2,5D, KTB100200D, KTB100200/2,5D, KTB150300D, KTB150300/2,5D, KTB200400D, KTB200400/2,5D, KTB200500D, KTB200500/2,5D, KTB300600D, KTB300600/2,5D, KTB375750D, KTB375750/2,5D, KTB400800D, KTB400800/2,5D, KTB5001000D, KTB5001000/2,5D, KTB5001200D, KTB6001200D, KTB6001200/2,5D, KTB6001600D, KTB8001600D, KTB8001800D, KTB8002000D, KTB12002400D, KTB12002600D, KTB12002800D, KTB6001600/1,5D, KTB8002200D
Durchmesser	35-2800 mm
Arbeitsdruck	1-3 bar
