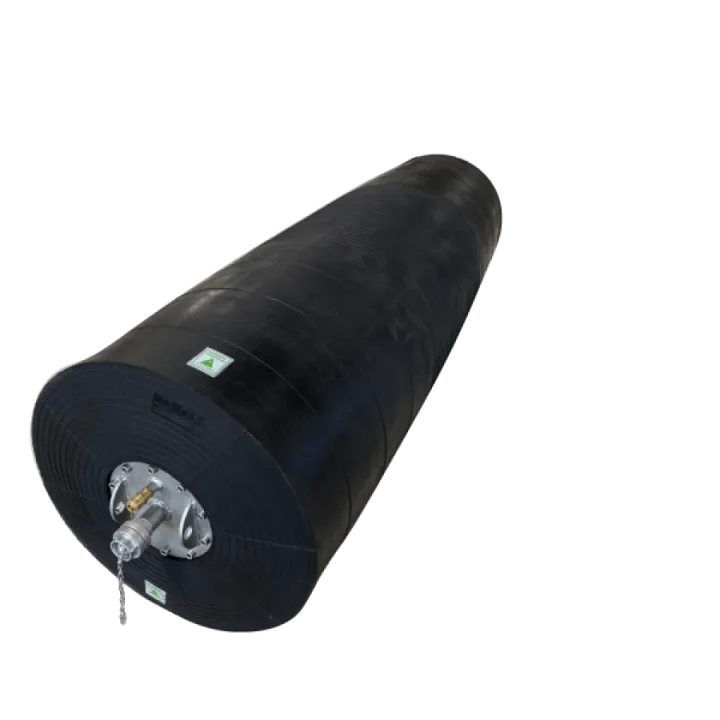

HOCHDRUCK PRÜFBLASEN
ARTKL.NO:YKTB
Bitte anmelden, um Preise zu sehen.
Maßtabelle (Zoll / imperial)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-pass Size | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (bar) / (psi) | (inch) | |
| YKTB70100 | 70 | 100 | 6.0 / 87 | 68 | 375 | 3.0 / 44 | 1/2" |
| YKTB100 | 100 | 100 | 10.0 / 145 | 91 | 550 | 6.0 / 87.0 | 1" |
| YKTB100150 | 100 | 150 | 6.0 / 87 | 91 | 550 | 3.0 / 44 | 1" |
| YKTB150 | 150 | 150 | 10.0 / 145 | 140 | 550 | 6.0 / 87.0 | 2" |
| YKTB150200 | 150 | 200 | 6.0 / 87 | 140 | 550 | 3.0 / 44 | 2" |
| YKTB200 | 200 | 200 | 10.0 / 145 | 187 | 650 | 6.0 / 87.0 | 2" |
| YKTB200300 | 200 | 300 | 6.0 / 87 | 187 | 650 | 3.0 / 44 | 2" |
| YKTB300 | 300 | 300 | 10.0 / 145 | 286 | 850 | 6.0 / 87.0 | 2" |
| YKTB300400 | 300 | 400 | 6.0 / 87 | 286 | 850 | 3.0 / 44 | 2" |
| YKTB375 | 375 | 375 | 10.0 / 145 | 361 | 1000 | 6.0 / 87.0 | 2" |
| YKTB375500 | 375 | 500 | 6.0 / 87 | 361 | 1000 | 3.0 / 44 | 2" |
| YKTB500 | 500 | 500 | 10.0 / 145 | 485 | 1100 | 5.0 / 72.5 | 2" |
| YKTB500600 | 500 | 600 | 6.0 / 87 | 485 | 1100 | 3.0 / 44 | 2" |
| YKTB600 | 600 | 600 | 10.0 / 145 | 586 | 1300 | 5.0 / 72.5 | 2" |
| YKTB600700 | 600 | 700 | 6.0 / 87 | 586 | 1300 | 3.0 / 44 | 2" |
| YKTB800 | 800 | 800 | 10.0 / 145 | 782 | 1300 | 5.0 / 72.5 | 2" |
| YKTB8001000 | 800 | 1000 | 6.0 / 87 | 782 | 1300 | 3.0 / 44 | 2" |
| YKTB1200 | 1200 | 1200 | 5.0 / 72.5 | 1174 | 1300 | 3.0 / 44 | 2" |
Maßtabelle (Zoll / imperial)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-pass Size | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (bar) / (psi) | (inch) | |
| YKTB70100 | 2.8" | 4" | 6.0 / 87 | 2.67" | 14.76" | 3.0 / 44 | 1/2" |
| YKTB100 | 4" | 4" | 10.0 / 145 | 3.58" | 21.65" | 6.0 / 87.0 | 1" |
| YKTB100150 | 4" | 6" | 6.0 / 87 | 3.58" | 21.65" | 3.0 / 44 | 1" |
| YKTB150 | 6" | 6" | 10.0 / 145 | 5.51" | 21.65" | 6.0 / 87.0 | 2" |
| YKTB150200 | 6" | 8" | 6.0 / 87 | 5.51" | 21.65" | 3.0 / 44 | 2" |
| YKTB200 | 8" | 8" | 10.0 / 145 | 7.36" | 25.59" | 6.0 / 87.0 | 2" |
| YKTB200300 | 8" | 12" | 6.0 / 87 | 7.36" | 25.59" | 3.0 / 44 | 2" |
| YKTB300 | 12" | 12" | 10.0 / 145 | 11.25" | 33.46" | 6.0 / 87.0 | 2" |
| YKTB300400 | 12" | 16" | 6.0 / 87 | 11.25" | 33.46" | 3.0 / 44 | 2" |
| YKTB375 | 15" | 15" | 10.0 / 145 | 14.21" | 39.37" | 6.0 / 87.0 | 2" |
| YKTB375500 | 15" | 20" | 6.0 / 87 | 14.21" | 39.37" | 3.0 / 44 | 2" |
| YKTB500 | 20" | 20" | 10.0 / 145 | 19.09" | 43.30" | 5.0 / 72.5 | 2" |
| YKTB500600 | 20" | 24" | 6.0 / 87 | 19.09" | 43.30" | 3.0 / 44 | 2" |
| YKTB600 | 24" | 24" | 10.0 / 145 | 23.07" | 51.18" | 5.0 / 72.5 | 2" |
| YKTB600700 | 24" | 28" | 6.0 / 87 | 23.07" | 51.18" | 3.0 / 44 | 2" |
| YKTB800 | 32" | 32" | 10.0 / 145 | 30.78" | 51.18" | 5.0 / 72.5 | 2" |
| YKTB8001000 | 32" | 40" | 6.0 / 87 | 30.78" | 51.18" | 3.0 / 44 | 2" |
| YKTB1200 | 48" | 48" | 5.0 / 72.5 | 46.22" | 51.18" | 3.0 / 44 | 2" |
Beschreibung
Die Hochdruck Prüfblase ist für Anwendungen mit erhöhten Druckanforderungen konzipiert. Sie besteht aus besonders robusten Materialien und verstärkten Strukturen, um auch unter extremen Bedingungen eine sichere Abdichtung zu gewährleisten. Sie wird vor allem in industriellen und stark belasteten Rohrsystemen eingesetzt.
Zusätzliche Informationen
| Ausführung | YKTB70100, YKTB100150, YKTB150200, YKTB200300, YKTB300400, YKTB375500, YKTB500600, YKTB600700, YKTB8001000 |
|---|---|
| Durchmesser | 1778-30480 mm |
| Arbeitsdruck | 5-10 bar |
