HALBRUNDE ROHRDICHTKISSEN
Bitte anmelden, um Preise zu sehen.

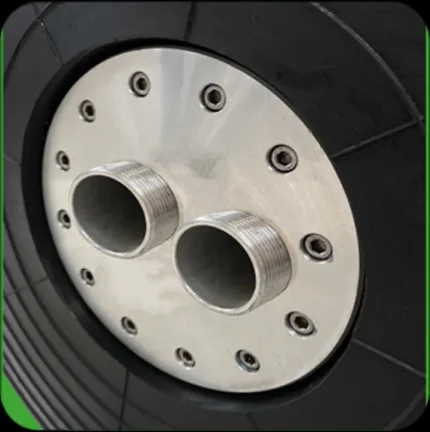

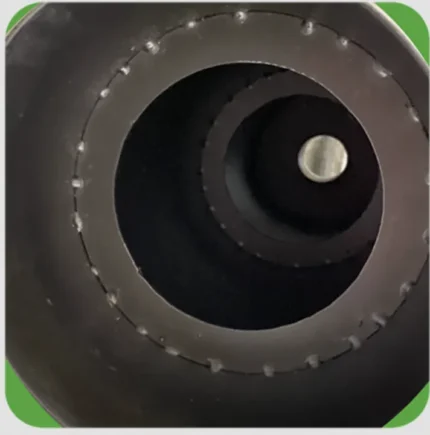

PRÜFBLASEN mit DOPPELT BYPASS
Bitte anmelden, um Preise zu sehen.

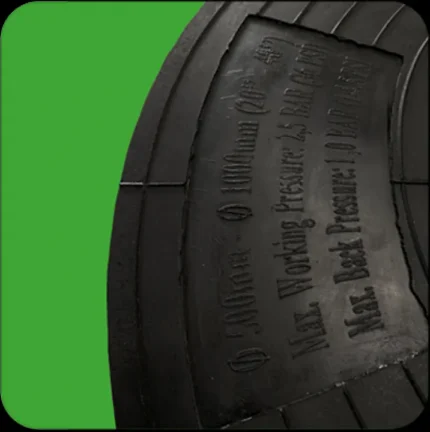

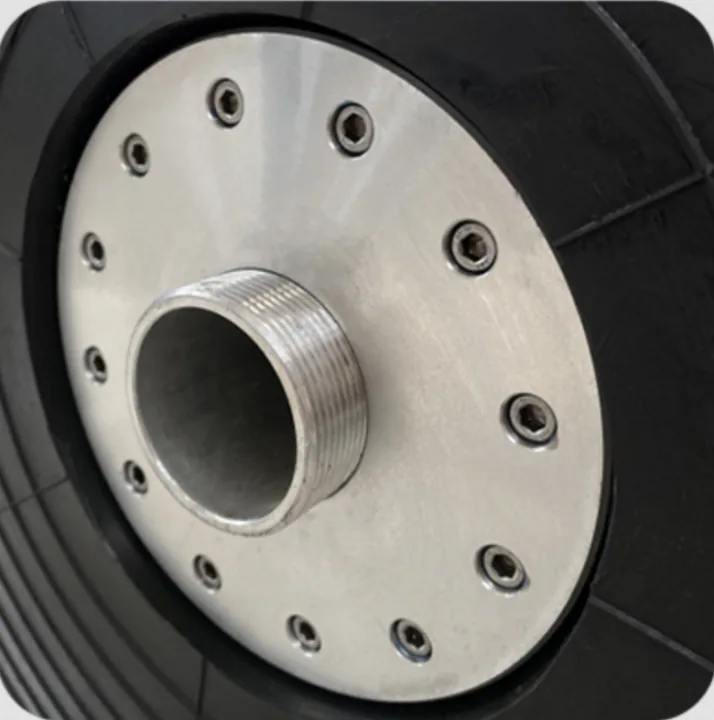

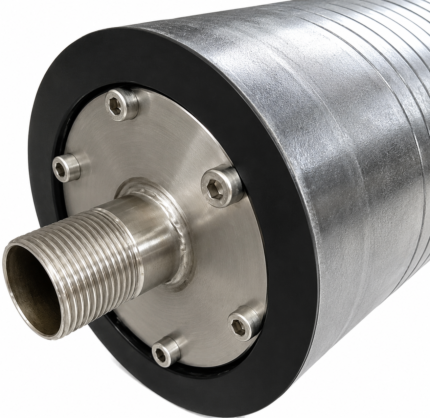

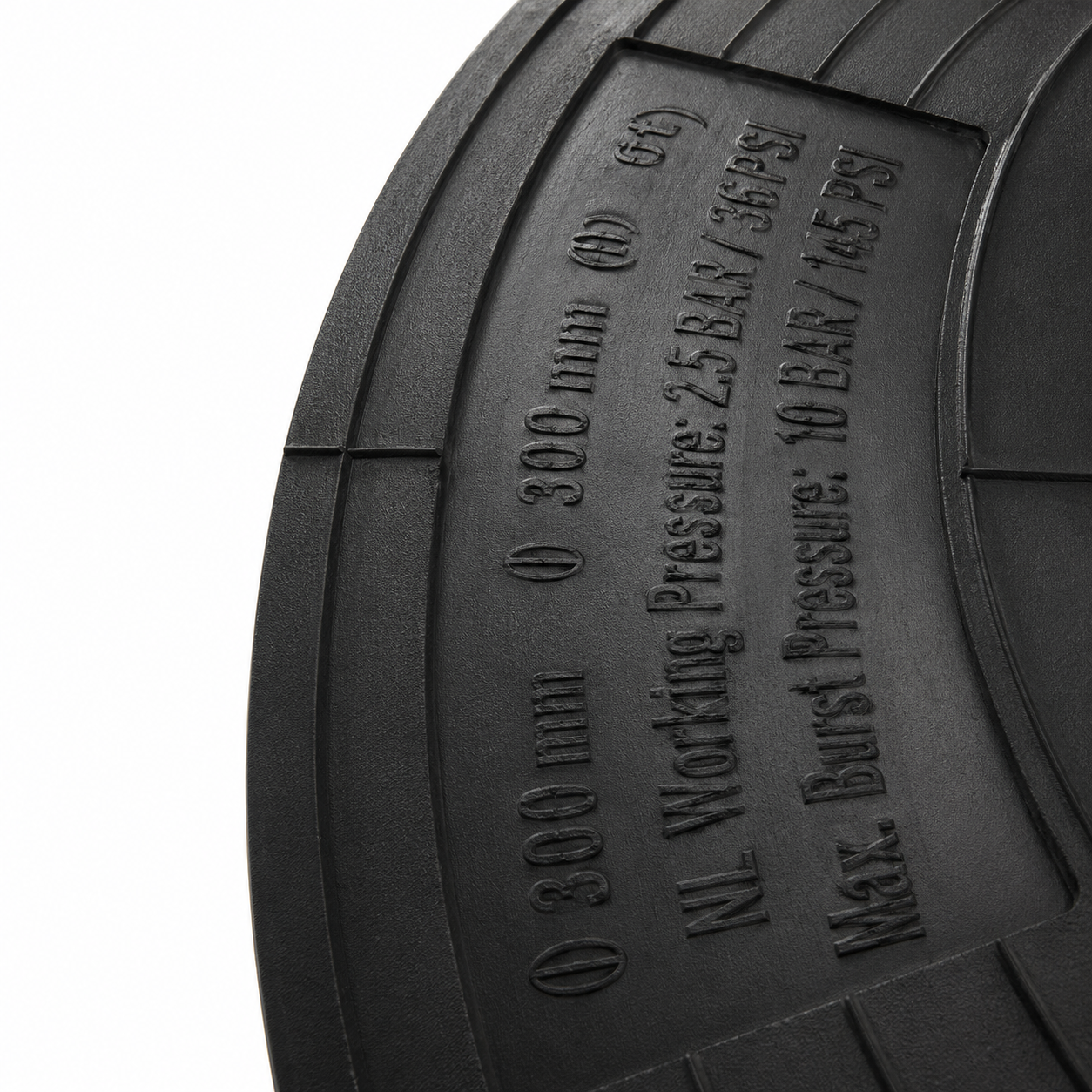

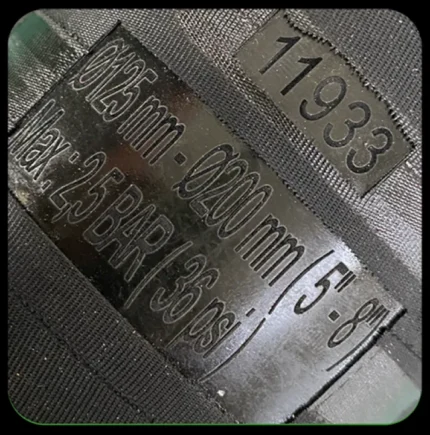

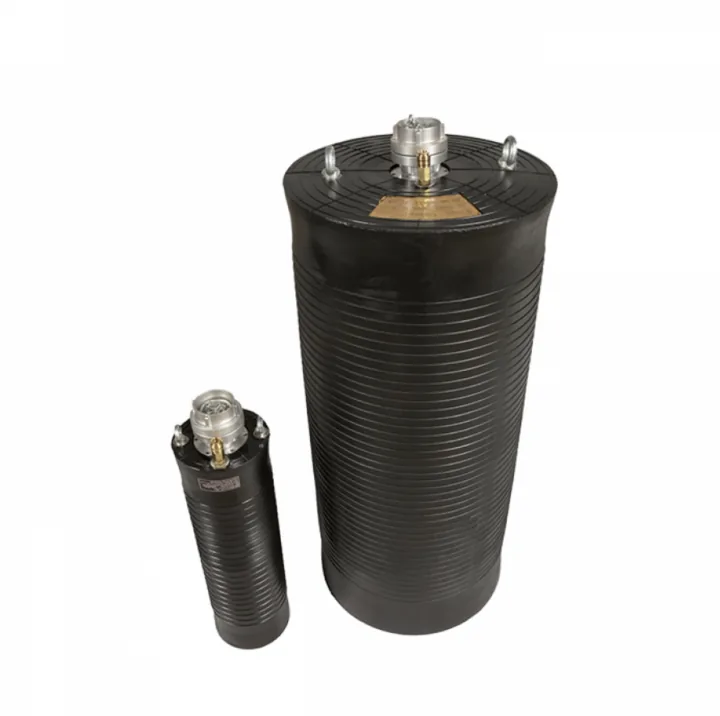

PRÜFBLASEN
ARTKL.NO:KTB
Bitte anmelden, um Preise zu sehen.
Maßtabelle (metrisch)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (bar) / (psi) | (mm) | (lbs) | |
| KTB3570 | 35 | 70 | 3.0 / 44 | 33 | 175 | 0.5 / 7.3 | 3/10" | 1.4 |
| KTB50100 | 50 | 100 | 1.5 / 22 | 47 | 350 | 0.5 / 7.3 | 1/4" | 0.5 |
| KTB50100/2,5 | 50 | 100 | 2.5 / 36 | 47 | 350 | 1.0 / 15 | 1/4" | 0.6 |
| KTB70150 | 70 | 150 | 1.5 / 22 | 68 | 400 | 0.5 / 7.3 | 1/2" | 1.3 |
| KTB70150/2,5 | 70 | 150 | 2.5 / 36 | 68 | 400 | 1.0 / 15 | 1/2" | 1.5 |
| KTB100200 | 100 | 200 | 1.5 / 22 | 91 | 600 | 0.5 / 7.3 | 1" | 2.6 |
| KTB100200/2,5 | 100 | 200 | 2.5 / 36 | 91 | 600 | 1.0 / 15 | 1" | 2.8 |
| KTB150300 | 150 | 300 | 1.5 / 22 | 140 | 600 | 0.5 / 7.3 | 2" | 4.8 |
| KTB150300/2,5 | 150 | 300 | 2.5 / 36 | 140 | 600 | 1.0 / 15 | 2" | 5.1 |
| KTB200400 | 200 | 400 | 1.5 / 22 | 187 | 700 | 0.5 / 7.3 | 2" | 8.5 |
| KTB200400/2,5 | 200 | 400 | 2.5 / 36 | 187 | 700 | 1.0 / 15 | 2" | 8.9 |
| KTB200500 | 200 | 500 | 1.5 / 22 | 187 | 850 | 0.5 / 7.3 | 2" | 9.5 |
| KTB200500/2,5 | 200 | 500 | 2.5 / 36 | 187 | 850 | 1.0 / 15 | 2" | 9.7 |
| KTB300600 | 300 | 600 | 1.5 / 22 | 286 | 900 | 0.5 / 7.3 | 2" | 13.4 |
| KTB300600/2,5 | 300 | 600 | 2.5 / 36 | 286 | 900 | 1.0 / 15 | 2" | 13.8 |
| KTB375750 | 375 | 750 | 1.5 / 22 | 361 | 1050 | 0.5 / 7.3 | 2" | 19.0 |
| KTB375750/2,5 | 375 | 750 | 2.5 / 36 | 361 | 1050 | 1.0 / 15 | 2" | 19.5 |
| KTB400800 | 400 | 800 | 1.5 / 22 | 365 | 1050 | 0.5 / 7.3 | 2" | 19.0 |
| KTB400800/2,5 | 400 | 800 | 2.5 / 36 | 365 | 1050 | 1.0 / 15 | 2" | 19.5 |
| KTB5001000 | 500 | 1000 | 1.5 / 22 | 486 | 1150 | 0.5 / 7.3 | 2" | 31.0 |
| KTB5001000/2,5 | 500 | 1000 | 2.5 / 36 | 486 | 1150 | 1.0 / 15 | 2" | 31.5 |
| KTB5001200 | 500 | 1000 | 1.5 / 22 | 486 | 1350 | 0.5 / 7.3 | 2" | 35.0 |
| KTB6001200 | 600 | 1200 | 2.5 / 36 | 586 | 1350 | 0.3 / 4.4 | 2" | 43.0 |
| KTB6001200/2,5 | 600 | 1200 | 2.5 / 36 | 586 | 1350 | 0.8 /1.6 | 2" | 45.0 |
| KTB6001600 | 600 | 1200 | 1.0 / 15 | 586 | 2100 | 0.3 / 4.4 | 2" | 66.0 |
| KTB6001600/1,5 | 600 | 1200 | 1.5 / 22 | 586 | 2100 | 0.4/ 5.8 | 2" | 78.0 |
| KTB8001600 | 800 | 1600 | 1.0 / 15 | 782 | 2050 | 0.5 / 7.3 | 2" | 90.0 |
| KTB8001800 | 800 | 1800 | 1.0 / 15 | 782 | 2300 | 0.4/ 5.8 | 2" | 100.0 |
| KTB8002000 | 800 | 2000 | 1.0 / 15 | 782 | 2800 | 0.4/ 5.8 | 2" | 115.0 |
| KTB8002200 | 800 | 2200 | 1.0 / 15 | 782 | 3300 | 0.3 / 4.4 | 2" | 126.0 |
| KTB12002400 | 1200 | 2400 | 1.0 / 15 | 1172 | 3100 | 0.5 / 7.3 | 2" | 206.0 |
| KTB12002600 | 1200 | 2600 | 1.0 / 15 | 1172 | 3100 | 0.4/ 5.8 | 2" | 220.0 |
| KTB12002800 | 1200 | 2800 | 1.0 / 15 | 1172 | 4100 | 0.3 / 4.4 | 2" | 240.0 |
Maßtabelle (Zoll / imperial)
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | By-Pass Size | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (bar) / (psi) | (inch) | (lbs) | |
| KTB3570 | 1.4” | 2.8” | 3.0 / 44 | 1.3" | 6.9" | 0.5 / 7.3 | 3/10" | 3.0 |
| KTB50100 | 2” | 4” | 1.5 / 22 | 1.9" | 13.8" | 0.5 / 7.3 | 1/4" | 1.1 |
| KTB50100/2,5 | 2” | 4” | 2.5 / 36 | 1.9" | 13.8" | 1.0 / 15 | 1/4" | 1.3 |
| KTB70150 | 2.8” | 6” | 1.5 / 22 | 2.7" | 15.7" | 0.5 / 7.3 | 1/2" | 2.8 |
| KTB70150/2,5 | 2.8” | 6” | 2.5 / 36 | 2.7" | 15.7" | 1.0 / 15 | 1/2" | 3.3 |
| KTB100200 | 4” | 8” | 1.5 / 22 | 3.6" | 23.6" | 0.5 / 7.3 | 1" | 5.7 |
| KTB100200/2,5 | 4” | 8” | 2.5 / 36 | 3.6" | 23.6" | 1.0 / 15 | 1" | 6.1 |
| KTB150300 | 6” | 12” | 1.5 / 22 | 5.5" | 23.6" | 0.5 / 7.3 | 2" | 10.5 |
| KTB150300/2,5 | 6” | 12” | 2.5 / 36 | 5.5" | 23.6" | 1.0 / 15 | 2" | 11.2 |
| KTB200400 | 8” | 16” | 1.5 / 22 | 7.4" | 27.6" | 0.5 / 7.3 | 2" | 18.7 |
| KTB200400/2,5 | 8” | 16” | 2.5 / 36 | 7.4" | 27.6" | 1.0 / 15 | 2" | 19.5 |
| KTB200500 | 8” | 20” | 1.5 / 22 | 7.4" | 33.5" | 0.5 / 7.3 | 2" | 20.9 |
| KTB200500/2,5 | 8” | 20” | 2.5 / 36 | 7.4" | 33.5" | 1.0 / 15 | 2" | 21.3 |
| KTB300600 | 12” | 24” | 1.5 / 22 | 11.3" | 35.4" | 0.5 / 7.3 | 2" | 29.4 |
| KTB300600/2,5 | 12” | 24” | 2.5 / 36 | 11.3" | 35.4" | 1.0 / 15 | 2" | 30.3 |
| KTB375750 | 15” | 30” | 1.5 / 22 | 14.2" | 41.3" | 0.5 / 7.3 | 2" | 41.8 |
| KTB375750/2,5 | 15” | 30” | 2.5 / 36 | 14.2" | 41.3" | 1.0 / 15 | 2" | 42.9 |
| KTB400800 | 16” | 32” | 1.5 / 22 | 14.4" | 41.3" | 0.5 / 7.3 | 2" | 41.8 |
| KTB400800/2,5 | 16” | 32” | 2.5 / 36 | 14.4" | 41.3" | 1.0 / 15 | 2" | 42.9 |
| KTB5001000 | 20” | 40” | 1.5 / 22 | 19" | 47.2" | 0.5 / 7.3 | 2" | 68.2 |
| KTB5001000/2,5 | 20” | 40” | 2.5 / 36 | 19" | 47.2" | 1.0 / 15 | 2" | 69.3 |
| KTB5001200 | 20” | 48" | 1.5 / 22 | 19" | 59.1" | 0.5 / 7.3 | 2" | 77.0 |
| KTB6001200 | 24” | 48" | 2.5 / 36 | 23.1" | 53.1" | 0.3 / 4.4 | 2" | 94.6 |
| KTB6001200/2,5 | 24” | 48" | 2.5 / 36 | 23.1" | 53.1" | 0.8 /1.6 | 2" | 99.0 |
| KTB6001600 | 24” | 64” | 1.0 / 15 | 23.1" | 82.7" | 0.3 / 4.4 | 2" | 145.2 |
| KTB6001600/1,5 | 24” | 64” | 1.5 / 22 | 23.1" | 82.7" | 0.4/ 5.8 | 2" | 171.6 |
| KTB8001600 | 32” | 64” | 1.0 / 15 | 30.8" | 74.8" | 0.5 / 7.3 | 2" | 198.0 |
| KTB8001800 | 32” | 72” | 1.0 / 15 | 30.8" | 92.5" | 0.4/ 5.8 | 2" | 220.0 |
| KTB8002000 | 32” | 80” | 1.0 / 15 | 30.8" | 112.2" | 0.4/ 5.8 | 2" | 253.0 |
| KTB8002200 | 32” | 88” | 1.0 / 15 | 30.8" | 131.9" | 0.3 / 4.4 | 2" | 277.2 |
| KTB12002400 | 48” | 96” | 1.0 / 15 | 46" | 126" | 0.5 / 7.3 | 2" | 453.2 |
| KTB12002600 | 48” | 104” | 1.0 / 15 | 46" | 126" | 0.4/ 5.8 | 2" | 484.0 |
| KTB12002800 | 48” | 110” | 1.0 / 15 | 46" | 165.4" | 0.3 / 4.4 | 2" | 528.0 |
Beschreibung
Prüfblasen werden zur Dichtheitsprüfung von Rohrleitungen, Kanälen und Leitungssystemen eingesetzt. Sie dienen dazu, einzelne Rohrabschnitte temporär abzudichten, um diese anschließend mit Luft oder Wasser auf Dichtheit zu prüfen. Die Prüfblase wird in die Leitung eingebracht, positioniert und anschließend aufgeblasen, sodass sie sich sicher an die Rohrwand anlegt und den Bereich zuverlässig absperrt.
Zusätzliche Informationen
| Gewicht | n. v. |
|---|---|
| Ausführung | KTB3570, KTB50100, KTB50100/2,5, KTB70150, KTB70150/2,5, KTB100200, KTB100200/2,5, KTB150300, KTB150300/2,5, KTB200400, KTB200400/2,5, KTB200500, KTB200500/2,5, KTB300600, KTB300600/2,5, KTB375750, KTB375750/2,5, KTB400800, KTB400800/2,5, KTB5001000, KTB5001000/2,5, KTB5001200, KTB6001200, KTB6001200/2,5, KTB6001600, KTB8001600, KTB8001800, KTB8002000, KTB12002400, KTB12002600, KTB12002800, KTB6001600/1,5, KTB8002200 |
| Durchmesser | 35-2800 mm |
| Arbeitsdruck | 1-3 bar |
