PRÜFBLASEN MIT BYPASS FÜR SCHÄCHTE

ARTKL.NO:SKB

Bitte anmelden, um Preise zu sehen.

Maßtabelle (metrisch)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions		By-Pass Size	Approx. Weight
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Total Lenght	By-Pass Size	Approx. Weight
	(mm)	(mm)	(bar) / (psi)	(mm)	(mm)	(mm)	(kg)
	SKB300400	300	400	1.5 / 22	282	252	2x1/4"	5.0
SKB400500	400	500	1.5 / 22	382	252	2x1/4"	6.5
SKB500600	500	600	1.5 / 22	482	252	2x1/4"	8.0
SKB600700	600	700	1.5 / 22	582	252	2x1/4"	10.0
SKB700800	700	800	1.5 / 22	682	252	2x1/4"	12.0
SKB800900	800	900	1.5 / 22	782	252	2x1/4"	13.5
SKB9001050	900	1050	1.5 / 22	882	252	2x1/4"	15.0

Maßtabelle (Zoll / imperial)

Product Code	Size Usage Range		Max. Working Pressure	Deflated Plug Dimensions		By-Pass Size	Approx. Weight
	Min. Diameter	Max. Diameter	Max. Working Pressure	Diameter	Total Lenght	By-Pass Size	Approx. Weight
	(inch)	(inch)	(bar) / (psi)	(inch)	(inch)	(inch)	(lbs)
	SKB300400	12"	16"	1.5 / 22	11"	10"	2x1/4"	11.0
SKB400500	16"	20"	1.5 / 22	15"	10"	2x1/4"	14.2
SKB500600	20"	24"	1.5 / 22	19"	10"	2x1/4"	18.0
SKB600700	24"	28"	1.5 / 22	23"	10"	2x1/4"	22.0
SKB700800	28"	32"	1.5 / 22	27"	10"	2x1/4"	26.0
SKB800900	32"	35"	1.5 / 22	31"	10"	2x1/4"	29.7
SKB9001050	35"	41"	1.5 / 22	34"	10"	2x1/4"	33.0

Beschreibung

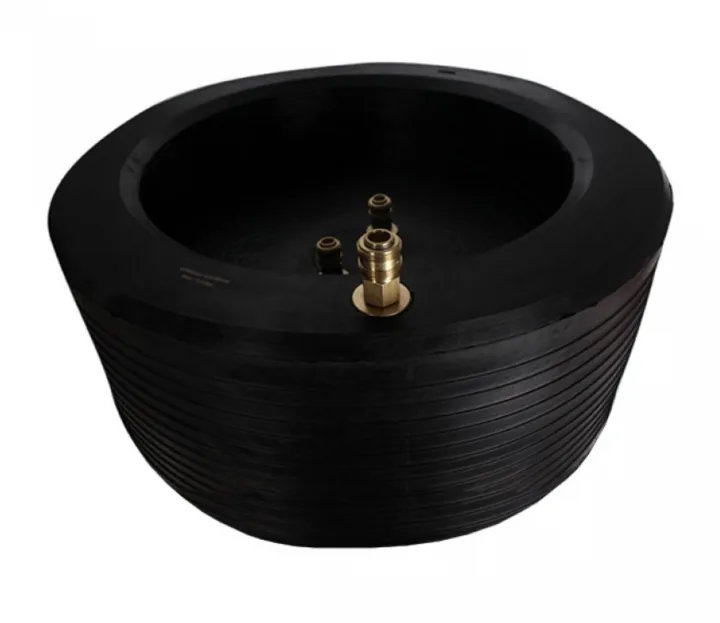

PIPE DOKTOR Bagel Shaped Pipe Test Plugs are short test plugs that allow low pressure manhole testing. It is produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C. Its biggest advantage is that it is designed to be lighter and easier to transport compared to manhole test products.
