HALBRUNDE ROHRDICHTKISSEN
Artikel Nr.: OV

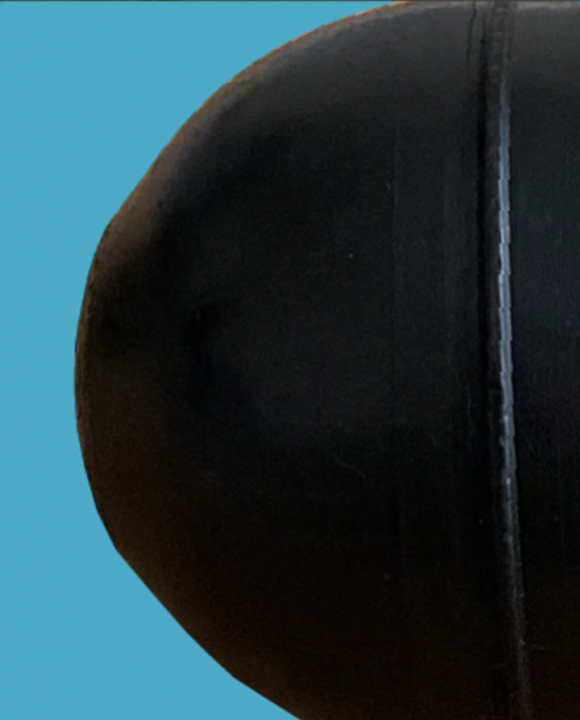

PIPE DOKTOR Half Circle Pipe Plugs are used to temporarily blocking the pipelines with bendies in short pipe distances. It is produced by vulcanizing SBR+NR rubber and high strength fabrics.It is resistant to temperatures between -30°C and +70°C.
METRIC
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (bar) / (psi) | (kg) | |
| OV5070 | 50 | 70 | 2.5 / 36 | 45 | 145 | 0.5 / 7.3 | 0.2 |
| OV70100 | 70 | 100 | 2.5 / 36 | 66 | 160 | 0.5 / 7.3 | 0.3 |
| OV100150 | 100 | 150 | 2.5 / 36 | 93 | 190 | 0.5 / 7.3 | 0.6 |
| OV150200 | 150 | 200 | 2.5 / 36 | 143 | 265 | 0.5 / 7.3” | 0.9 |
IMPERIAL
| Product Code | Size Usage Range | Max. Working Pressure | Deflated Plug Dimensions | Back Pressure | Approx. Weight | ||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (bar) / (psi) | (lbs) | |
| OV5070 | 2" | 2.8" | 2.5 / 36 | 1.8" | 5.7" | 0.5 / 7.3 | 0.4 |
| OV70100 | 2.8" | 4" | 2.5 / 36 | 2.6" | 6.3" | 0.5 / 7.3 | 0.7 |
| OV100150 | 4" | 6" | 2.5 / 36 | 3.6" | 7.5" | 0.5 / 7.3 | 1.3 |
| OV150200 | 6" | 8" | 2.5 / 36 | 5.6" | 10.4" | 0.5 / 7.3” | 2.0 |
